Image for Illustration purposes only. Actual product may vary
FAG 234410M.SP is a spherical roller bearing with a 50mm bore. This super precision bearing is designed for high-speed and high-accuracy applications. It features an optimized internal design for enhanced performance and durability. Ideal for machine tool spindles and other precision machinery.
MODEL 234410M.SP
$1,624.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable:No
Application
Spindles
Cage Material
Brass
Fillet Radius
1 mm
I.D.
50 mm
Max Rpm
9500 rpm
O.D.
80 mm
Overall Width
38 mm
Precision Rating
ABEC 7 (ISO Class 4)
Radial Dynamic Load Capacity
24 kN
Series
2344
Thrust Bearing Type
Double-Direction

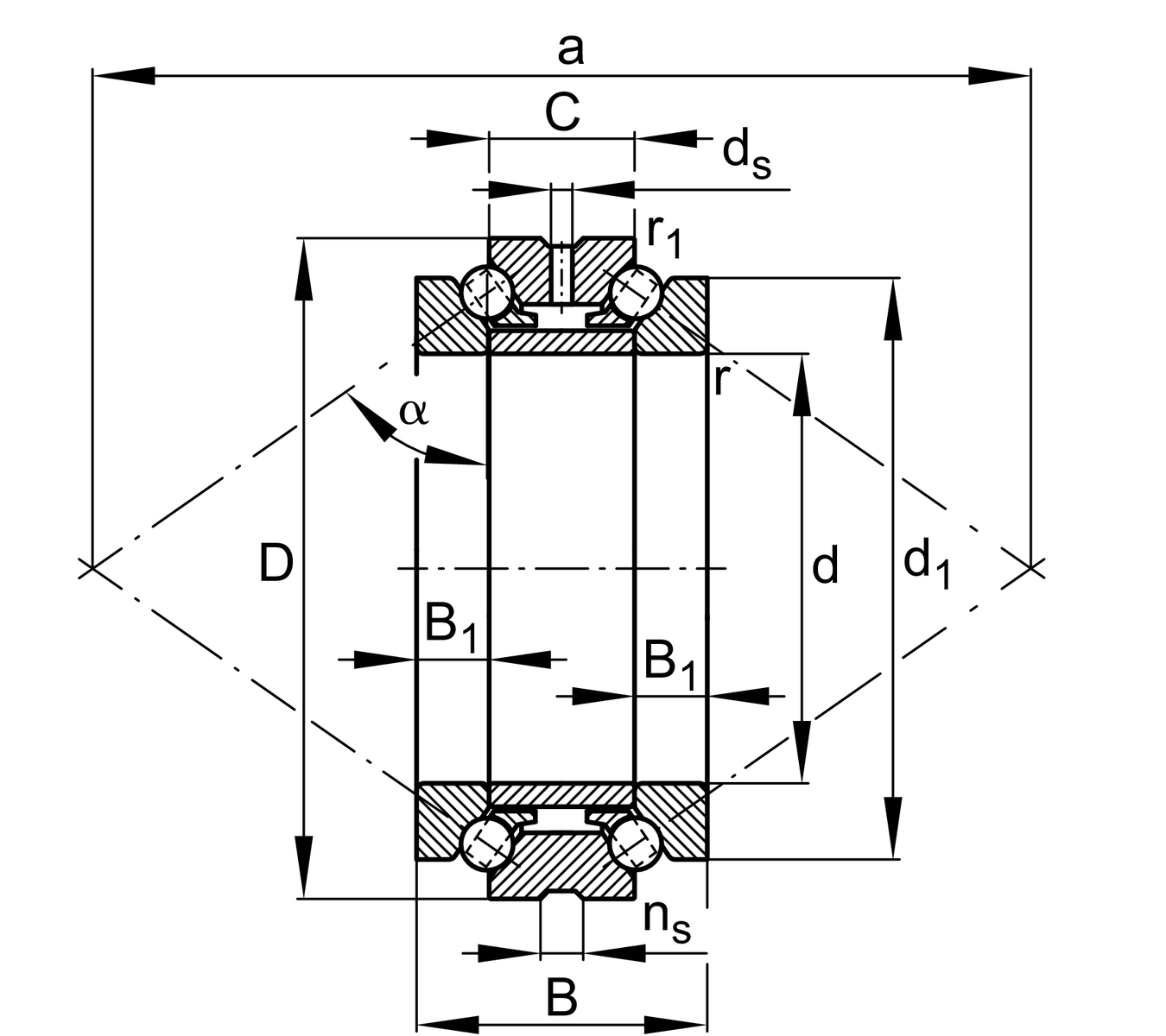

Specifications
| d | 50 mm |
| D | 80 mm |
| B | 38 mm |
| B 1 | 9, 5 mm | |
| C | 19 mm | |
| Tolerance: H12 | 75 mm | D a |
|---|---|---|
| d 1 | 70 mm | |
| Tolerance: h12 | 62, 5 mm | d a |
| d s | 3, 2 mm | |
| n s | 4, 8 mm | |
| r 1 min | 0, 15 mm | |
| r a max | 1 mm | |
| r a1 max | 0, 15 mm | |
| r min | 1 mm | |
| Contact angle | 60 ° | α |
| Mass | 0, 485 kg | m |
|---|---|---|
| Basic dynamic load rating, axial | 26000 N | C a |
| Basic static load rating, axial | 72000 N | C 0a |
| Limiting speed for grease lubrication | 7000 1/min | n G Fett |
| Limiting speed for minimal quantity oil lubrication | 9500 1/min | n G Öl |
| Fatigue limit load, axial | 6500 N | C ua |
How do I choose the right type of bearing for my application?
Start with the load and how it’s applied. You need to know if you’re dealing with radial loads, axial loads, or a mix of both. Then look at speed, operating environment, and space constraints. For example, ball bearings are great for high speed and lighter loads, while roller bearings handle heavier loads but usually at lower speeds. If there’s contamination, moisture, or heat involved, you may need sealed bearings or specific materials. In most cases, the right choice comes down to matching load type, speed, and environment to the bearing design.
What is the difference between deep groove and angular contact ball bearings?
Deep groove ball bearings are the most common type. They’re designed to handle mainly radial loads, but they can also take some axial load in both directions. They’re simple, versatile, and used in everything from motors to conveyors. Angular contact ball bearings are built for combined loads, especially where there’s significant axial force in one direction. They’re often used in pairs and are common in higher precision or higher load applications like pumps and gearboxes. If your load is mostly radial, go deep groove. If axial load matters more, angular contact is usually the better choice.
