Image for Illustration purposes only. Actual product may vary
FAG N10 bearing accessory with 50mm bore and 68mm OD. Designed for use with FAG pillow block housings, this accessory ensures proper fit and reliable performance in industrial applications.
MODEL N10
$7.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable:No
I.D.
1.967
Limiting speed for grease lubrication
20000 1/min n G Fett
Mass
0, 145 kg m
O.D.
2.688

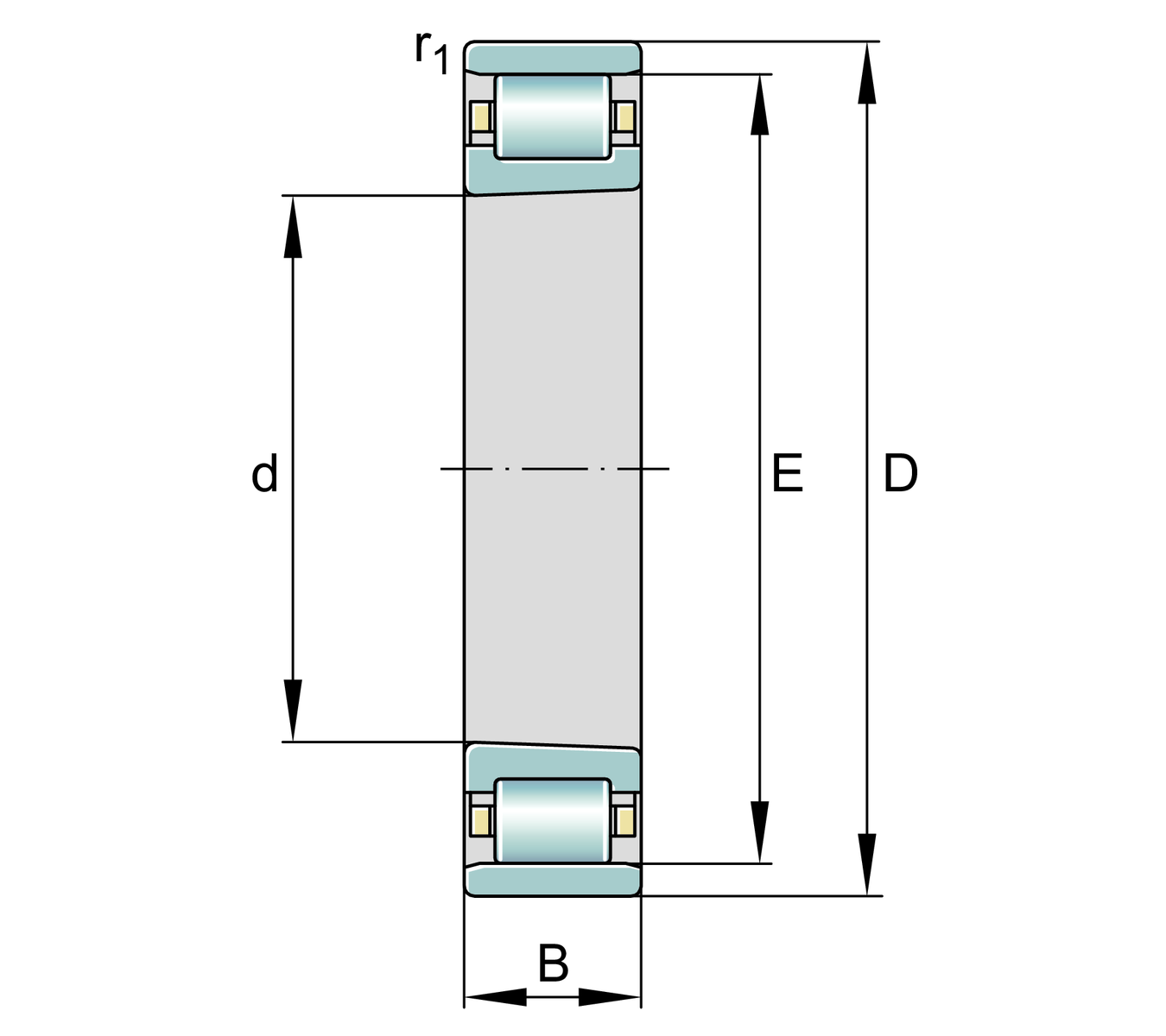

Specifications
| d | 30 mm | |
| D | 55 mm | |
| B | 13 mm |
| D a max | 50 mm | |
| D b min | 50 mm | |
| d 1 | 38, 7 mm | |
| d a min | 33, 2 mm | |
| E | 48, 5 mm | |
| r a max | 1 mm | |
| r min | 1 mm | |
| Axial displacement facility from central position | 1, 5 mm | s |
| Mass | 0, 145 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 19400 N | C r |
| Basic static load rating, radial | 19300 N | C 0r |
| Limiting speed for grease lubrication | 20000 1/min | n G Fett |
| Limiting speed for minimal quantity oil lubrication | 24000 1/min | n G Öl |
| Fatigue limit load, radial | 2850 N | C ur |
How do I choose the right type of bearing for my application?
Start with the load and how it’s applied. You need to know if you’re dealing with radial loads, axial loads, or a mix of both. Then look at speed, operating environment, and space constraints. For example, ball bearings are great for high speed and lighter loads, while roller bearings handle heavier loads but usually at lower speeds. If there’s contamination, moisture, or heat involved, you may need sealed bearings or specific materials. In most cases, the right choice comes down to matching load type, speed, and environment to the bearing design.
