Pramet LNMT 311240SN-M:T9315 7661699 Turning Insert - Heavy Duty And Railway
MODEL 7661699
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$56.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
T9315
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

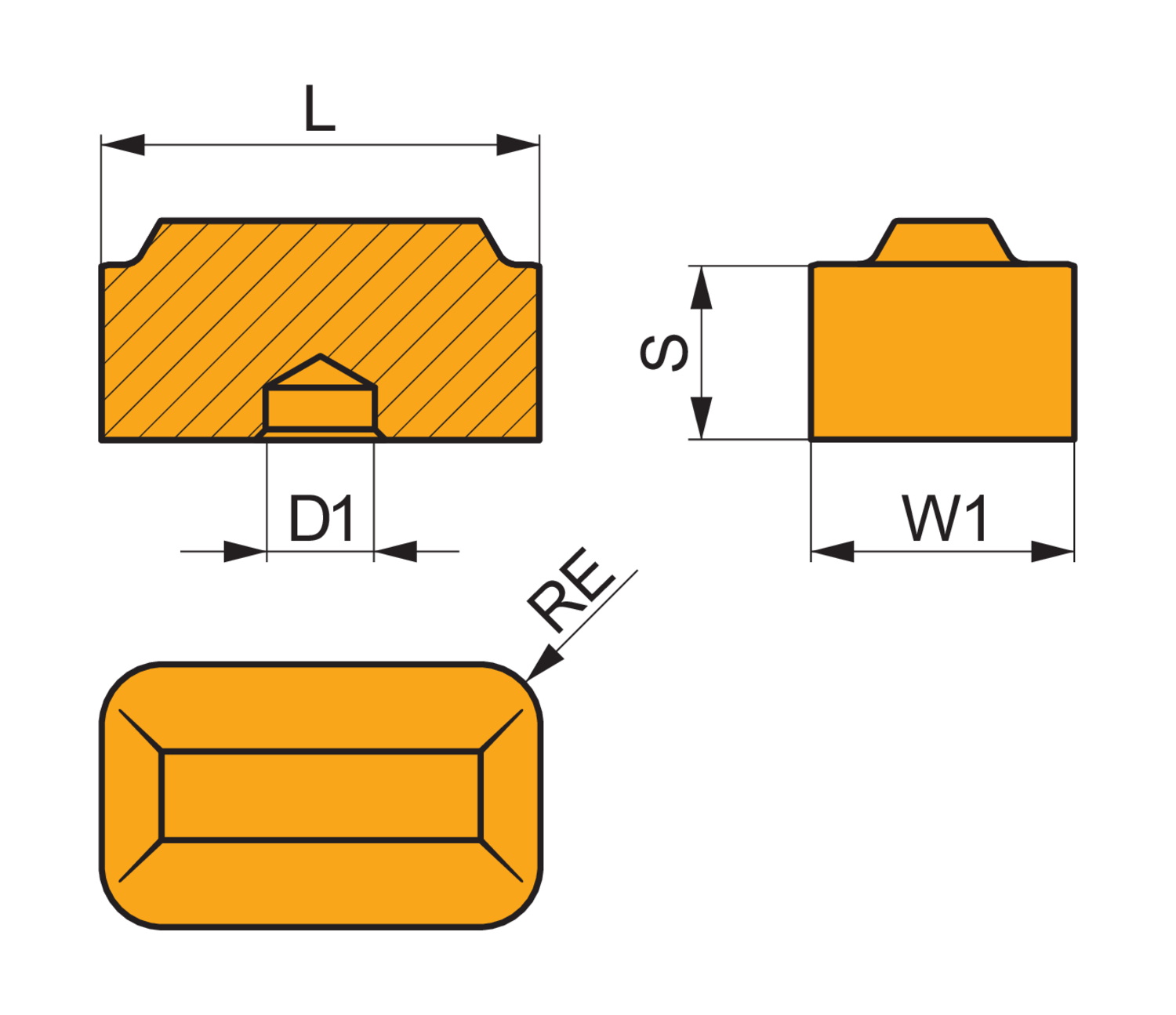

Corner radius - inch (RE)
0.187
Corner radius - millimeter (RE)
4.76
Cutting edge length - inch (L)
1.25
Cutting edge length - millimeter (L)
31.75
Depth of cut maximum - inch (APMX)
0.591
Depth of cut maximum - millimeter (APMX)
15
Depth of cut minimum - inch (APMN)
0.157
Depth of cut minimum - millimeter (APMN)
4
Feed maximal - millimeter
1.5
Feed minimal - millimeter
0.5
Feed_MAX_IMP_NUM
0.059
Feed_MIN_IMP_NUM
0.02
Fixing hole diameter - inch (D1)
0.312
Fixing hole diameter - millimeter (D1)
7.93
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.5
Insert thickness - millimeter (S)
12.7
Insert width - inch (W1)
0.75
Insert width - millimeter (W1)
19.05
Single-sided negative turning insert, rectangular with a main edge length of 31.75mm, 4.76 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker M with rounded cutting edges with facet, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for fine to heavy machining of steels
