Image for Illustration purposes only. Actual product may vary
Pramet LNMX 301940SN-RM:T9310 6753311 Turning Insert - Heavy Duty And Railway
MODEL 6753311
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$56.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
RM
Coating
T9310
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Positive effect on tool life - cooling is recommended

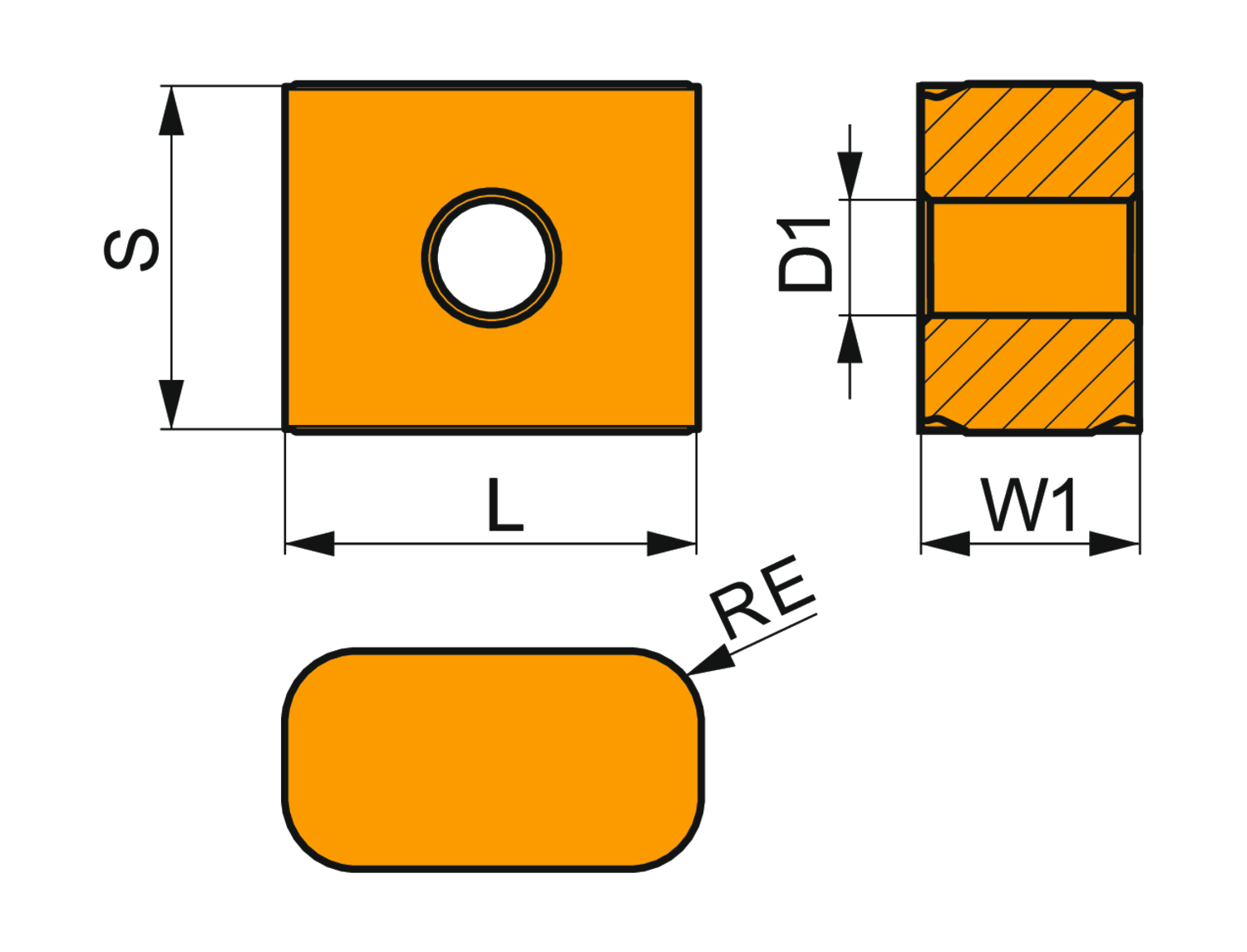

Corner radius - inch (RE)
0.157
Corner radius - millimeter (RE)
4
Cutting edge length - inch (L)
1.181
Cutting edge length - millimeter (L)
30
Depth of cut maximum - inch (APMX)
0.394
Depth of cut maximum - millimeter (APMX)
10
Depth of cut minimum - inch (APMN)
0.079
Depth of cut minimum - millimeter (APMN)
2
Feed maximal - millimeter
1.8
Feed minimal - millimeter
0.55
Feed_MAX_IMP_NUM
0.071
Feed_MIN_IMP_NUM
0.022
Fixing hole diameter - inch (D1)
0.25
Fixing hole diameter - millimeter (D1)
6.35
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.75
Insert thickness - millimeter (S)
19.05
Insert width - inch (W1)
0.472
Insert width - millimeter (W1)
12
Special design negative turning insert, rectangular with a main edge length of 30mm, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges with facet, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01-P15, for medium to heavy machining of steels
