Pramet RCMX 2507MOS-37:6630 6751666 Turning Insert - Positive
MODEL 6751666
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$35.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
37
Coating
6630
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Positive effect on tool life - cooling is recommended
Depth of cut maximum - inch (APMX)
0.276
Depth of cut maximum - millimeter (APMX)
7
Depth of cut minimum - inch (APMN)
0.079
Depth of cut minimum - millimeter (APMN)
2
Feed maximal - millimeter
0.9
Feed minimal - millimeter
0.6
Feed_MAX_IMP_NUM
0.035
Feed_MIN_IMP_NUM
0.024

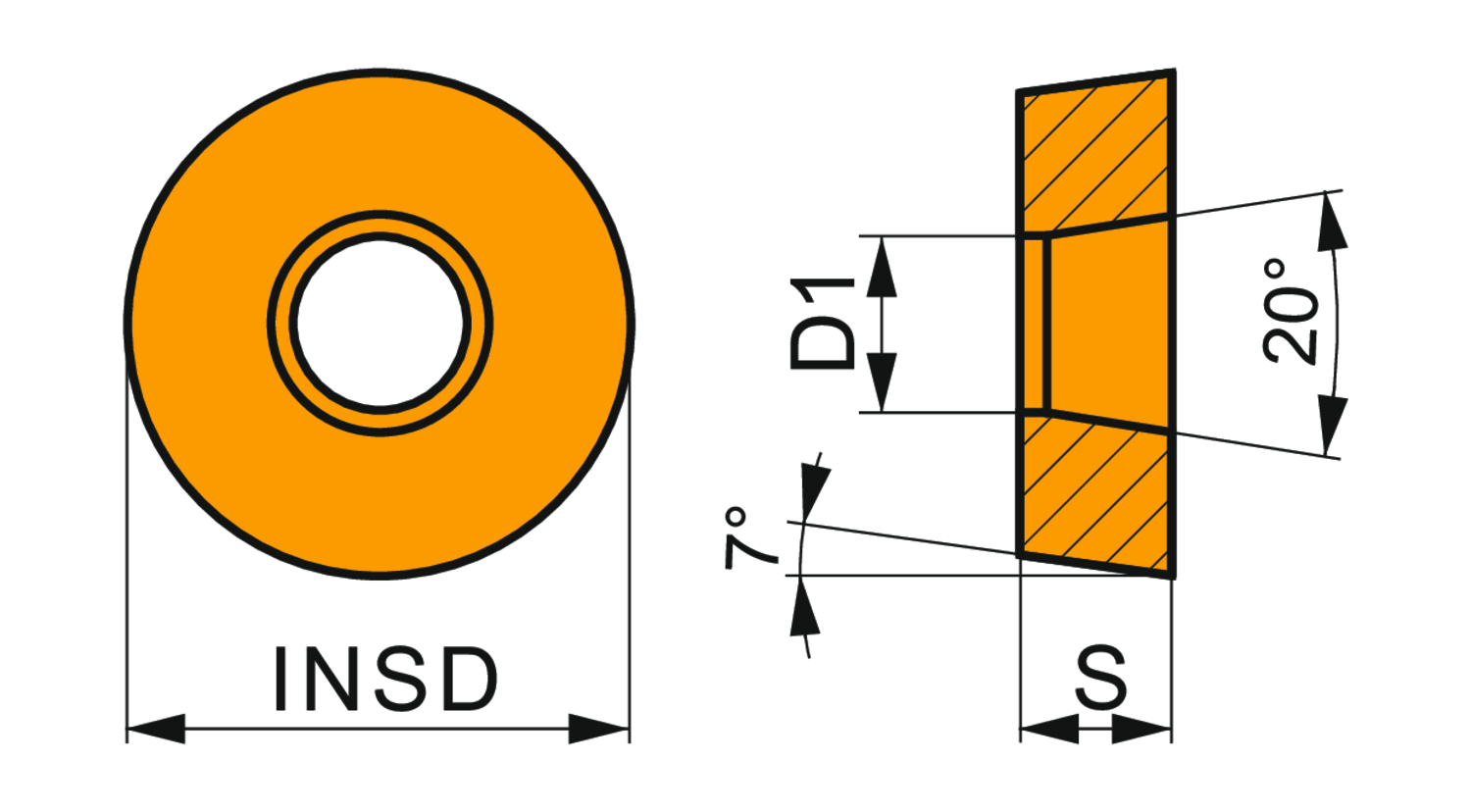

Fixing hole diameter - inch (D1)
0.283
Fixing hole diameter - millimeter (D1)
7.2
Insert diameter - inch (INSD)
0.984
Insert diameter - millimeter (INSD)
25
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Special design positive turning insert, round with 7° clearance, a diameter of 25mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 37 with rounded cutting edges with facet, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for medium to fine machining of steels
| Brand | Pramet |
| Model | TN 22NL070UN:T8030 |
