Pramet SNMX 191140SN-TF:T5315 6798541 Turning Insert - Heavy Duty And Railway
MODEL 6798541
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$26.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
TF
Coating
T5315
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Positive effect on tool life - cooling is recommended

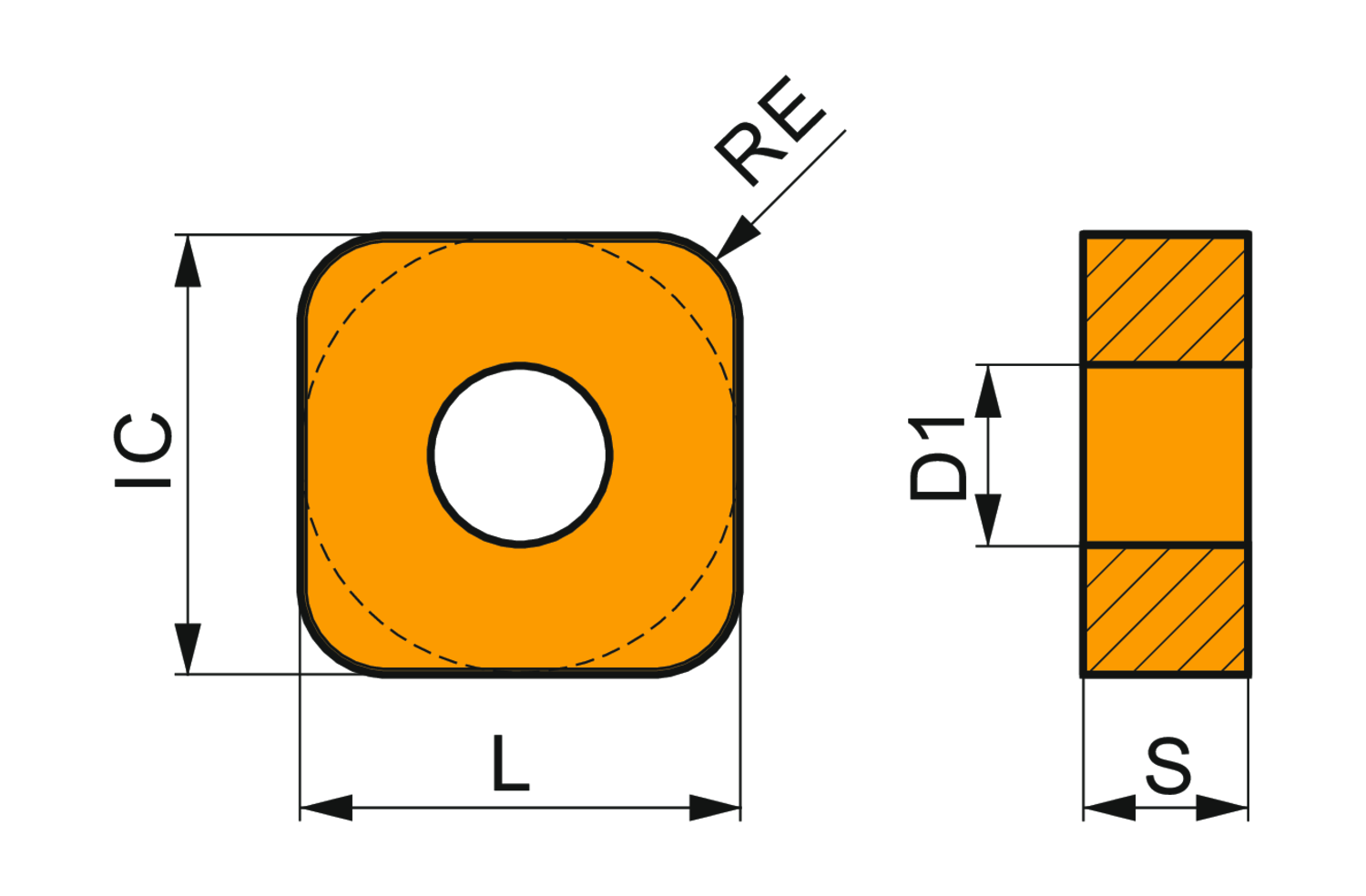

Corner radius - inch (RE)
0.157
Corner radius - millimeter (RE)
4
Cutting edge length - inch (L)
0.75
Cutting edge length - millimeter (L)
19.05
Depth of cut maximum - inch (APMX)
0.276
Depth of cut maximum - millimeter (APMX)
7
Depth of cut minimum - inch (APMN)
0.157
Depth of cut minimum - millimeter (APMN)
4
Feed maximal - millimeter
1.2
Feed minimal - millimeter
0.4
Feed_MAX_IMP_NUM
0.047
Feed_MIN_IMP_NUM
0.016
Fixing hole diameter - inch (D1)
0.305
Fixing hole diameter - millimeter (D1)
7.75
Inscribed circle diameter - inch (IC)
0.75
Inscribed circle diameter - millimeter (IC)
19.05
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.433
Insert thickness - millimeter (S)
11
Special design negative turning insert, square with inscribed circle diameter of 19.05mm, 11mm thick, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker TF with rounded cutting edges with facet, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for heavy to medium machining of cast-irons
