Pramet SNMX 251224S-SR:6630 6751659 Turning Insert - Heavy Duty And Railway
MODEL 6751659
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$53.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
SR
Coating
6630
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

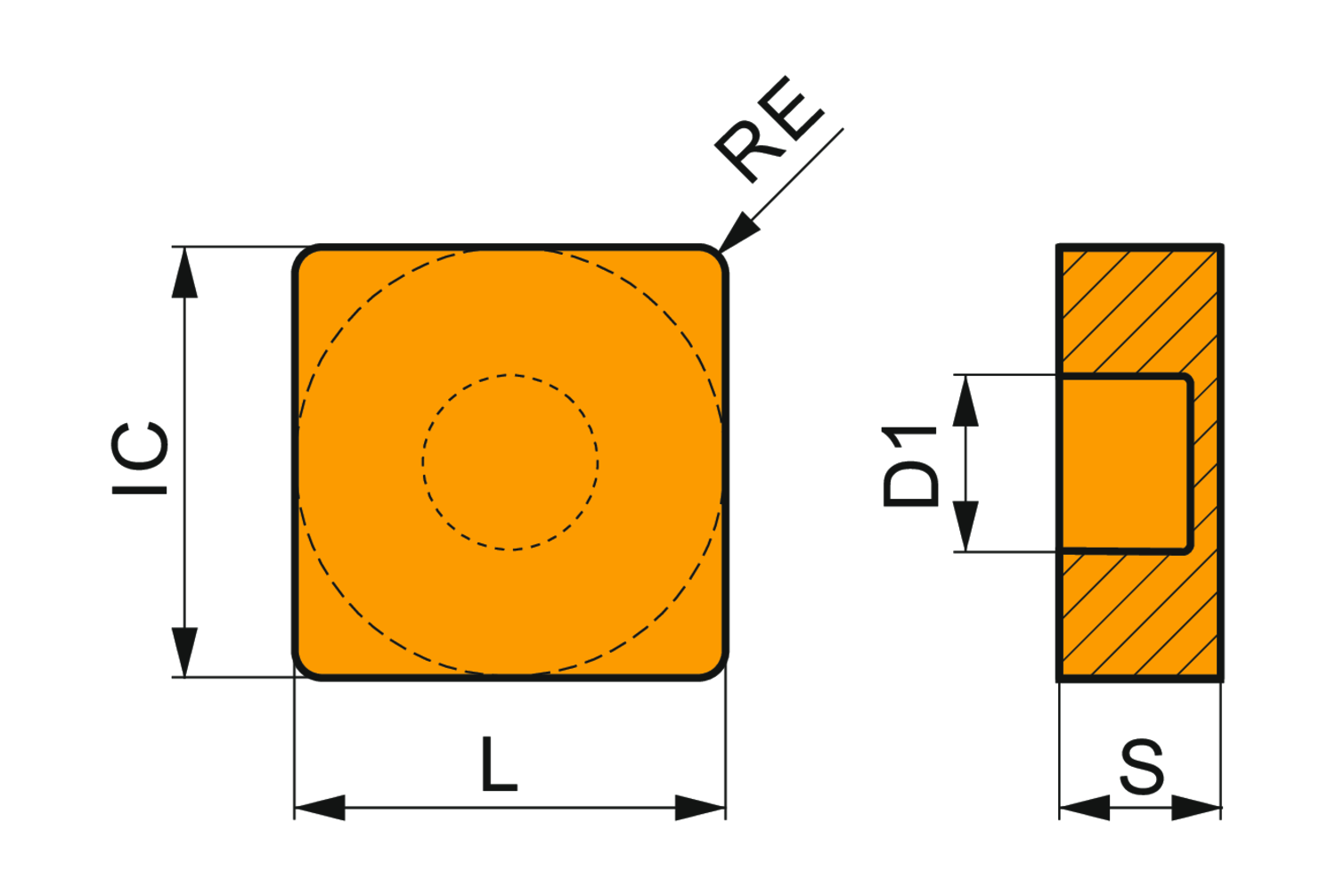

Corner radius - inch (RE)
0.094
Corner radius - millimeter (RE)
2.4
Cutting edge length - inch (L)
1
Cutting edge length - millimeter (L)
25.4
Depth of cut maximum - inch (APMX)
0.63
Depth of cut maximum - millimeter (APMX)
16
Depth of cut minimum - inch (APMN)
0.197
Depth of cut minimum - millimeter (APMN)
5
Feed maximal - millimeter
1.6
Feed minimal - millimeter
0.7
Feed_MAX_IMP_NUM
0.063
Feed_MIN_IMP_NUM
0.028
Fixing hole diameter - inch (D1)
0.361
Fixing hole diameter - millimeter (D1)
9.17
Inscribed circle diameter - inch (IC)
1
Inscribed circle diameter - millimeter (IC)
25.4
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.472
Insert thickness - millimeter (S)
12
Special design negative turning insert, square with inscribed circle diameter of 25.4mm, 12mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SR with rounded cutting edges with facet, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for heavy to extra heavy machining of steels and stainless-steels
