Pramet CCMT 32.52-FF2:T8430 7977200 Turning Insert - Positive
MODEL 7977200
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$8.68 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FF2
Coating
T8430
Coating process
PVD
Coating property (CTP)
1

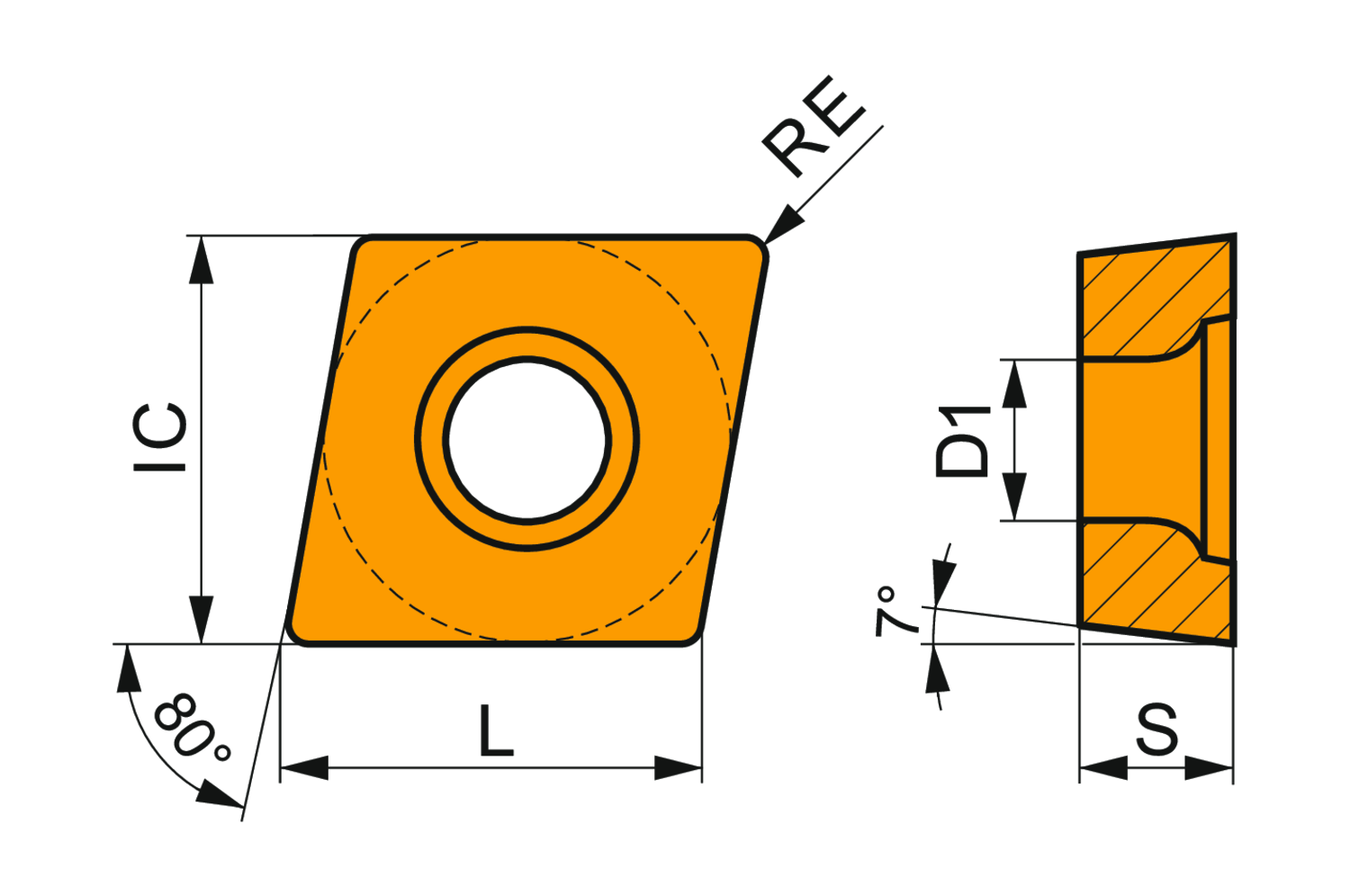

Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Cutting edge length - inch (L)
0.382
Cutting edge length - millimeter (L)
9.7
Fixing hole diameter - inch (D1)
0.173
Fixing hole diameter - millimeter (D1)
4.4
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
C - rhombic 80° included angle
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels
