Pramet TCMT 1.21.20.5-FF2:T8430 7977250 Turning Insert - Positive
MODEL 7977250
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$7.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes

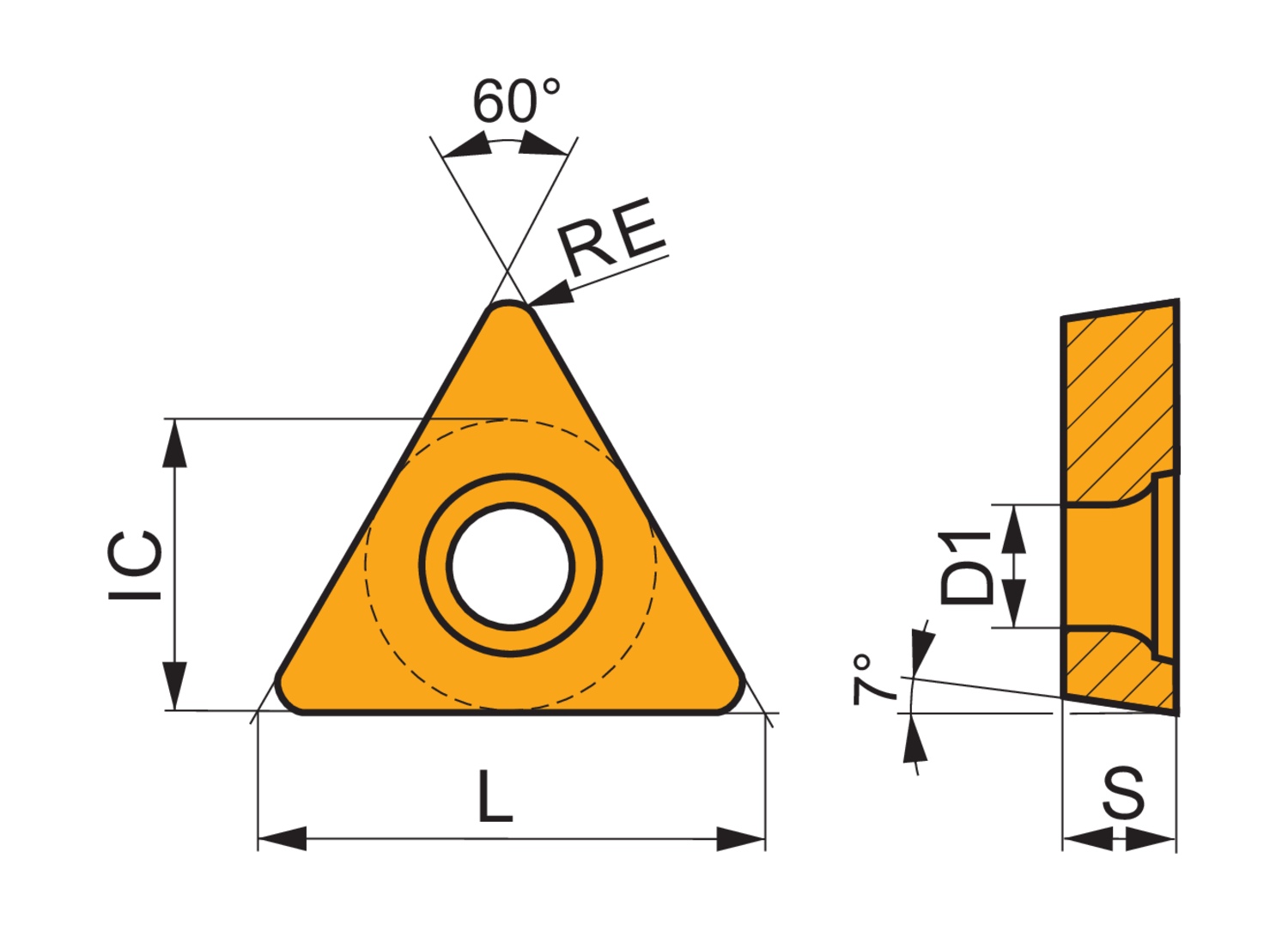

Chipbreaker
FF2
Coating
T8430
Coating process
PVD
Coating property (CTP)
1
Corner radius - inch (RE)
0.008
Corner radius - millimeter (RE)
0.2
Cutting edge length - inch (L)
0.272
Cutting edge length - millimeter (L)
6.9
Fixing hole diameter - inch (D1)
0.087
Fixing hole diameter - millimeter (D1)
2.2
Inscribed circle diameter - inch (IC)
0.156
Inscribed circle diameter - millimeter (IC)
3.97
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.078
Insert thickness - millimeter (S)
1.98
Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3.97mm, 1.98mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for fine to medium machining of steels
