Image for Illustration purposes only. Actual product may vary
Pramet A10H-SVXCR 07 6760753 Boring Bar ISO S - Right Hand
MODEL 6760753
$138.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

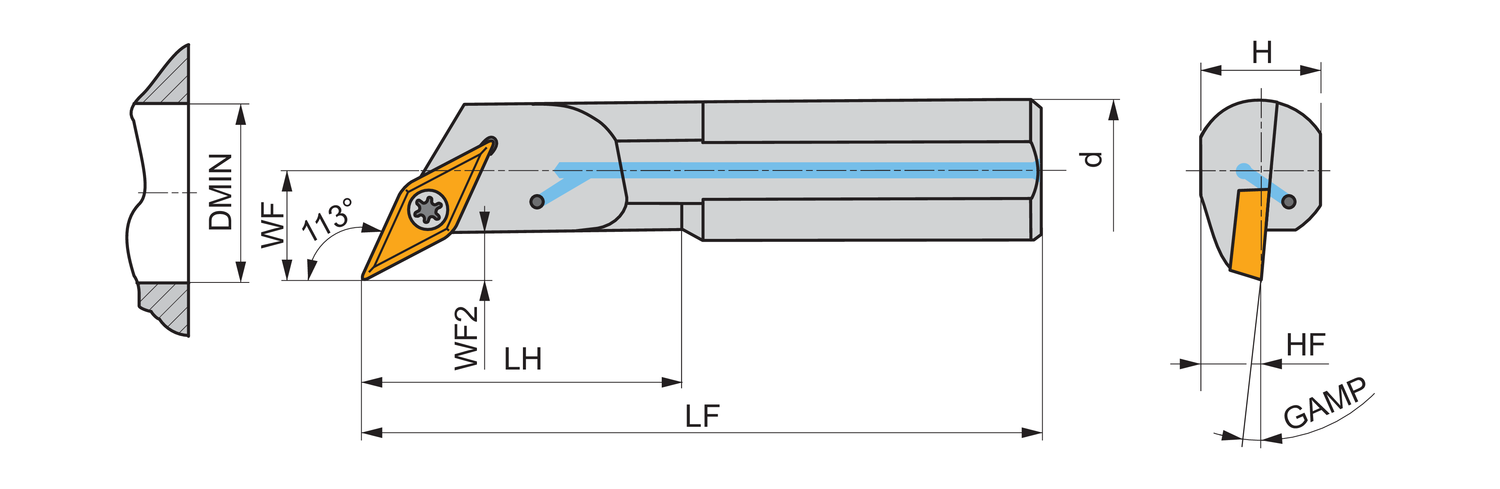

A dimension on LF - millimeter (LFA)
3
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Coolant supply property (CSP)
1
Direction of tool
Right
Functional height - inch (HF)
0.177
Functional height - millimeter (HF)
4.5
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.276
Functional width - millimeter (WF)
7
Head length - inch (LH)
0.866
Head length - millimeter (LH)
22
Minimum bore diameter - inch (DMIN)
0.492
Minimum bore diameter - millimeter (DMIN)
12.5
Shank height - inch (H)
0.354
Shank height - millimeter (H)
9
Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 3.97mm, 2.38mm thick (ISO designation VC.. 0702.. ), right hand special tool style, steel with coolant hole, 10mm diameter x 100mm long for single and multi-directional copy boring
