Image for Illustration purposes only. Actual product may vary
Pramet A25R-PTFNL 16 6757153 Boring Bar ISO P - Left Hand
MODEL 6757153
$278.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

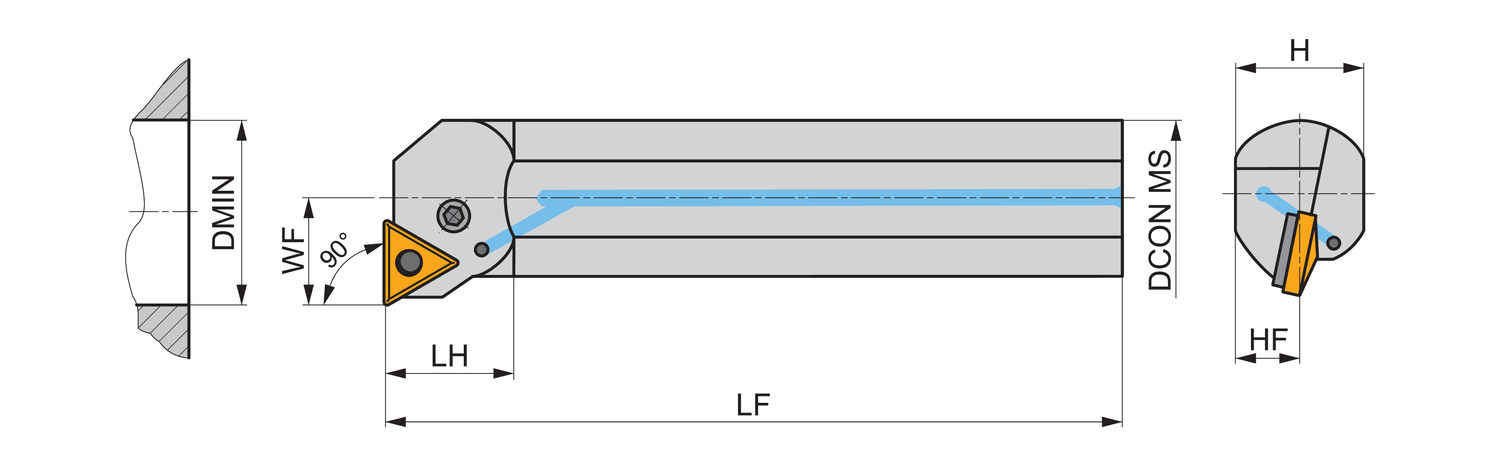

Clamping Type Code (MTP)
Hole clamping
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
0.453
Functional height - millimeter (HF)
11.5
Functional length - inch (LF)
7.874
Functional length - millimeter (LF)
200
Functional width - inch (WF)
0.669
Functional width - millimeter (WF)
17
Head length - inch (LH)
1.575
Head length - millimeter (LH)
40
Inclination angle (LAMS)
-12
Minimum bore diameter - inch (DMIN)
1.22
Minimum bore diameter - millimeter (DMIN)
32
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.906
Shank height - millimeter (H)
23
Shank width - inch (B)
0.906
Shank width - millimeter (B)
23
Lever lock boring bar for holding a triangular negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation TN.. 1604.. ), left hand 90° end cutting with off-set shank, steel with coolant hole, 25mm diameter x 200mm long for taper boring and longitudinal boring without shoulder
