Pramet A32S-SCLCR 12-A 6756641 Boring Bar ISO S - Right Hand
MODEL 6756641
$259.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

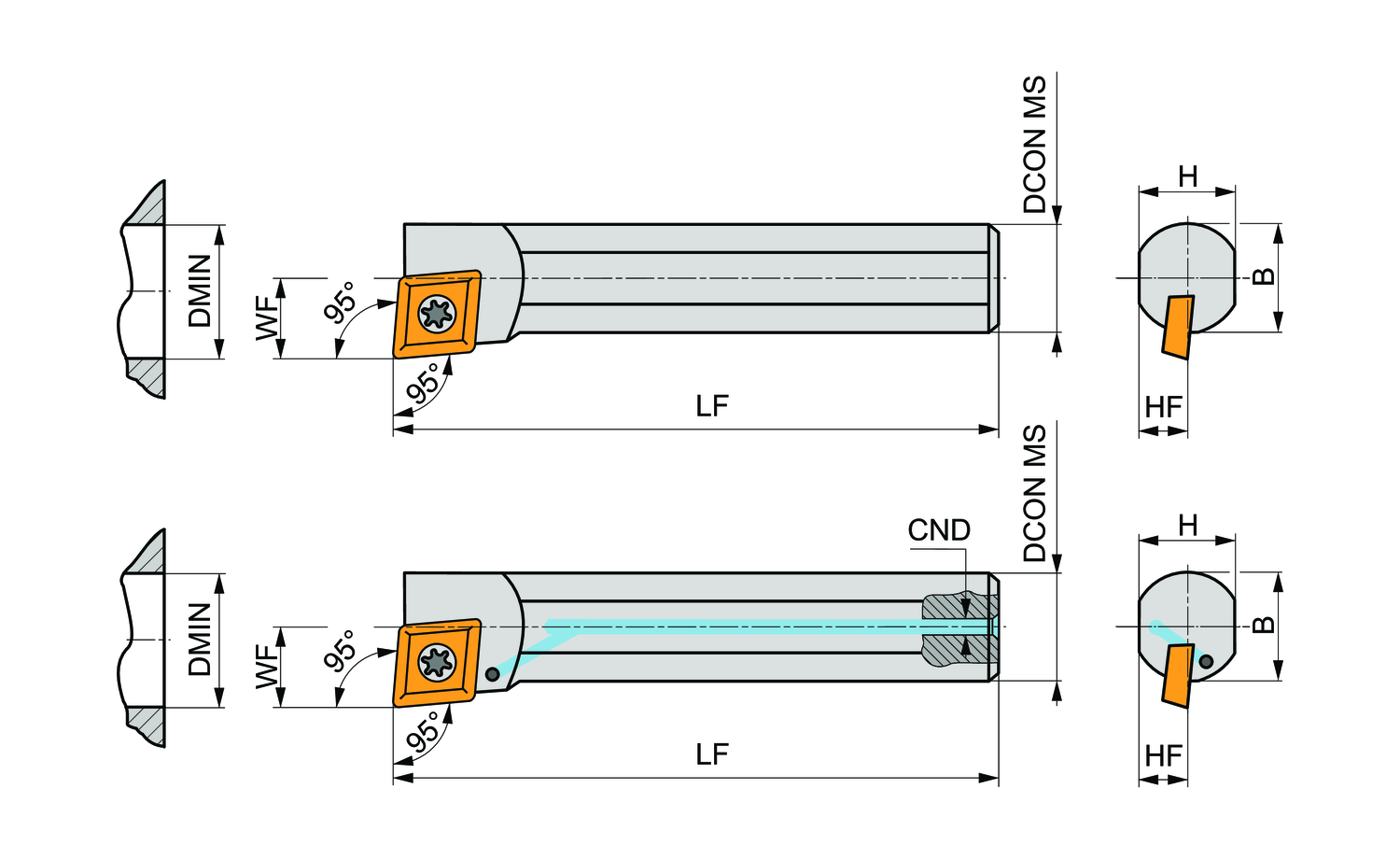

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant entry diameter - millimeter (CND)
8
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
9.843
Functional length - millimeter (LF)
250
Functional width - inch (WF)
0.866
Functional width - millimeter (WF)
22
Inclination angle (LAMS)
-10
Minimum bore diameter - inch (DMIN)
1.575
Minimum bore diameter - millimeter (DMIN)
40
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
1.181
Shank height - millimeter (H)
30
Shank width - inch (B)
1.181
Shank width - millimeter (B)
30
Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CC.. 1204.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 32mm diameter x 250mm long for taper boring and longitudinal boring with and without shoulder
