Image for Illustration purposes only. Actual product may vary
Pramet A40T-PWLNR 08 6757113 Boring Bar ISO P - Right Hand
MODEL 6757113
$325.74 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Hole clamping
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Right
Functional height - inch (HF)
0.728
Functional height - millimeter (HF)
18.5
Functional length - inch (LF)
11.811
Functional length - millimeter (LF)
300
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Head length - inch (LH)
1.969
Head length - millimeter (LH)
50
Inclination angle (LAMS)
-12
Minimum bore diameter - inch (DMIN)
1.89
Minimum bore diameter - millimeter (DMIN)
50
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
1.457
Shank height - millimeter (H)
38
Shank width - inch (B)
1.496
Shank width - millimeter (B)
38

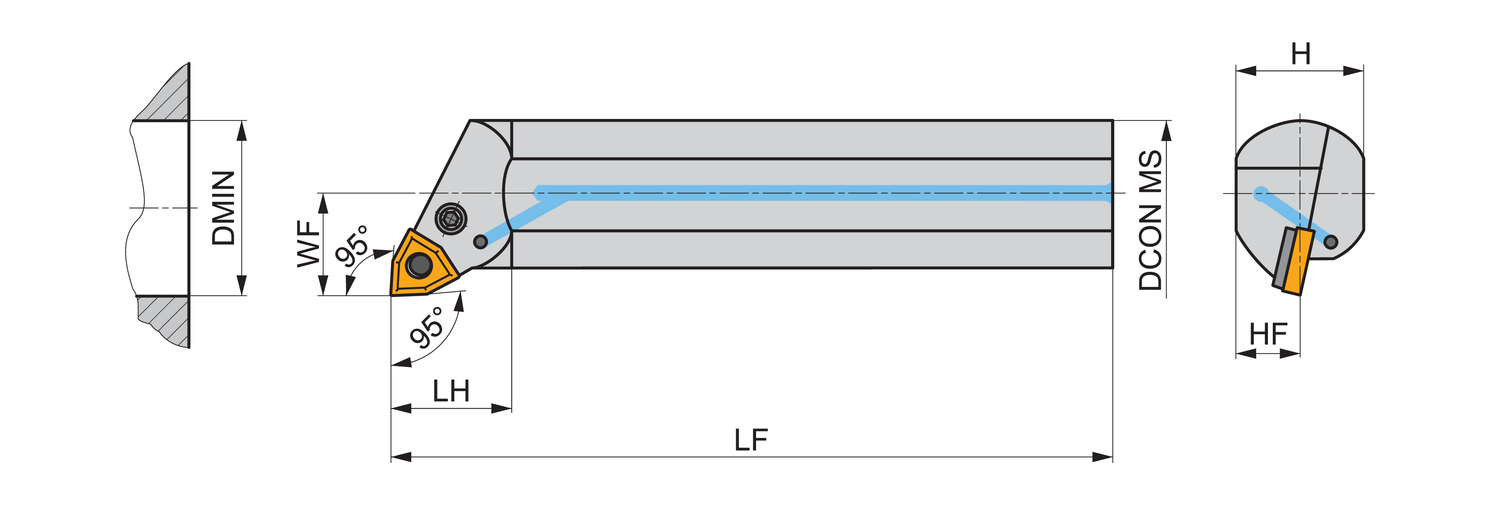

Lever lock boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder
