Image for Illustration purposes only. Actual product may vary
Pramet A60V-PDUNL 15 6757366 Boring Bar ISO P - Left Hand
MODEL A60V-PDUNL 15
$468.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

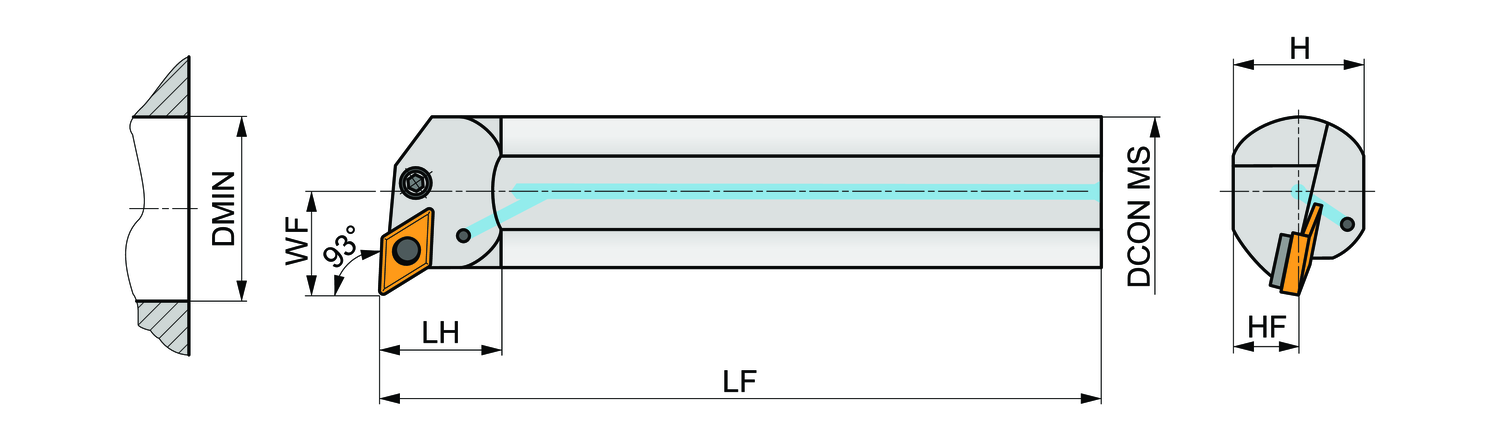

Clamping Type Code (MTP)
Hole clamping
Connection diameter - inch (DCON MS)
2.362
Connection diameter - millimeter (DCON MS)
60
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
1.122
Functional height - millimeter (HF)
28.5
Functional length - inch (LF)
15.748
Functional length - millimeter (LF)
400
Functional width - inch (WF)
1.693
Functional width - millimeter (WF)
43
Head length - inch (LH)
2.953
Head length - millimeter (LH)
75
Inclination angle (LAMS)
-12
Minimum bore diameter - inch (DMIN)
3.15
Minimum bore diameter - millimeter (DMIN)
80
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
2.244
Shank height - millimeter (H)
57
Shank width - inch (B)
2.303
Shank width - millimeter (B)
58.5
Lever lock boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation DN.. 1504.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 60mm diameter x 400mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
