Image for Illustration purposes only. Actual product may vary
Pramet E16M-SVXCL 07 6760764 Boring Bar Carbide ISO S - Left Hand
MODEL 6760764
$668.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

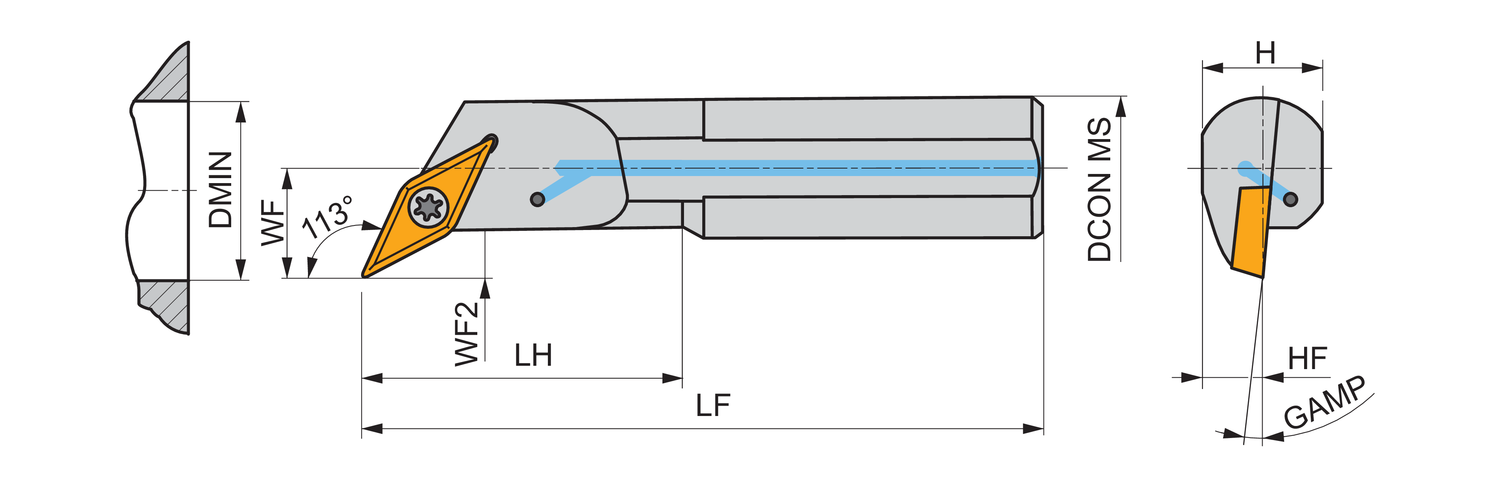

A dimension on LF - millimeter (LFA)
3
Axial rake angle (GAMP)
-6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
0.295
Functional height - millimeter (HF)
7.5
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.433
Functional width - millimeter (WF)
11
Head length - inch (LH)
1.417
Head length - millimeter (LH)
36
Minimum bore diameter - inch (DMIN)
0.689
Minimum bore diameter - millimeter (DMIN)
17.5
Shank height - inch (H)
0.591
Shank height - millimeter (H)
15
Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 3.97mm, 2.38mm thick (ISO designation VC.. 0702.. ), left hand special tool style, carbide with coolant hole, 16mm diameter x 150mm long for single and multi-directional copy boring
| Brand | Pramet |
| Model | A24T-DCLNR 5 |
