Pramet S10H-SCFCR 06 6756830 Boring Bar ISO S - Right Hand
MODEL 6756830
$132.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Direction of tool
Right
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.276
Functional width - millimeter (WF)
7
Inclination angle (LAMS)
-10
Minimum bore diameter - inch (DMIN)
0.512
Minimum bore diameter - millimeter (DMIN)
13
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.354
Shank height - millimeter (H)
9
Shank width - inch (B)
0.374
Shank width - millimeter (B)
9.5

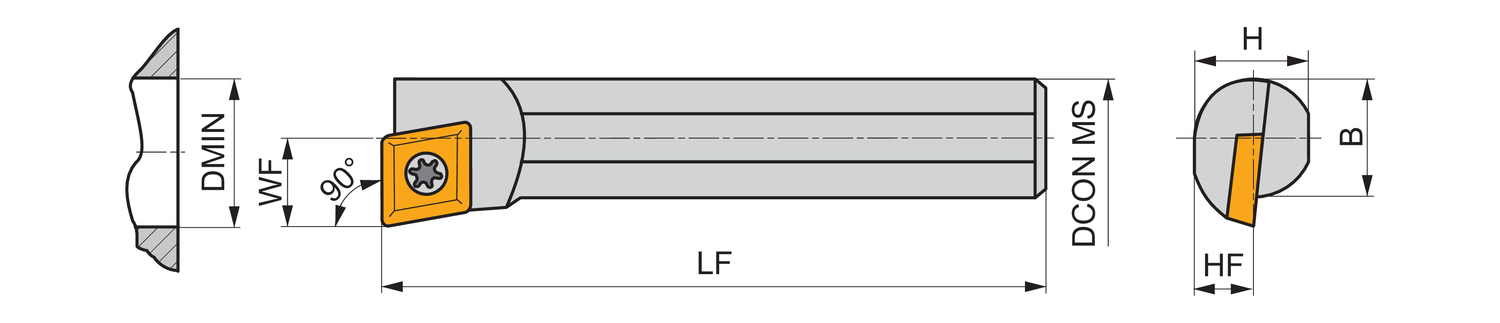

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 90° end cutting with off-set shank, steel without coolant hole, 10mm diameter x 100mm long for taper boring and longitudinal boring without shoulder
