Image for Illustration purposes only. Actual product may vary
Pramet S16Q-SCXCL 06 6757022 Boring Bar ISO S - Left Hand
MODEL 6757022
$132.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

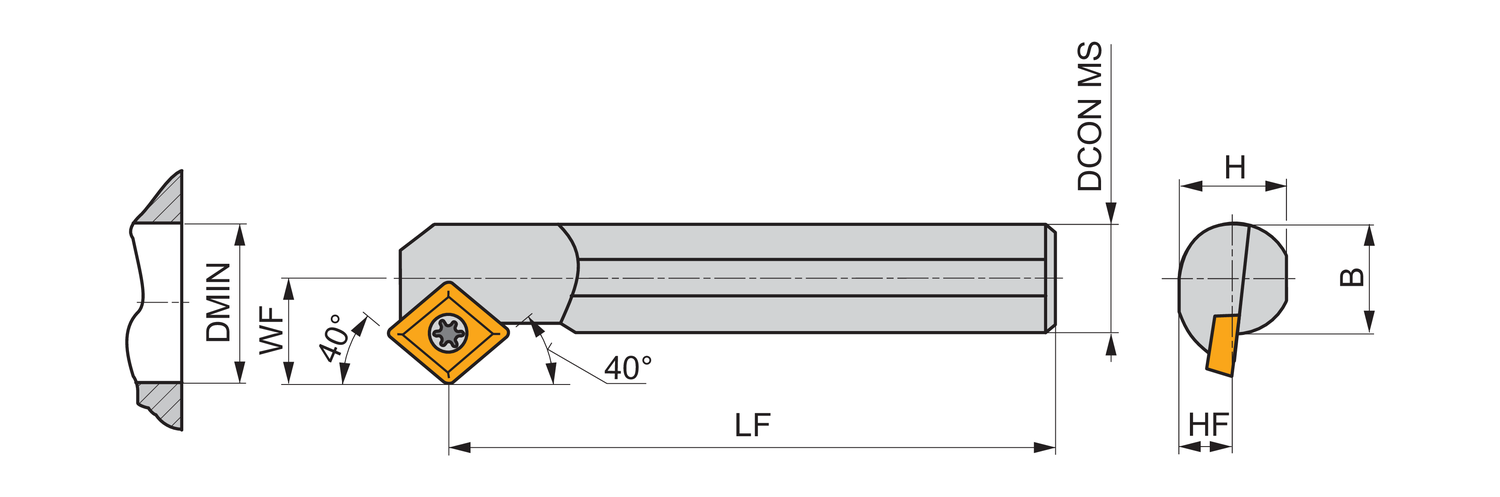

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Direction of tool
Left
Functional length - inch (LF)
7.087
Functional length - millimeter (LF)
180
Functional width - inch (WF)
0.433
Functional width - millimeter (WF)
11
Inclination angle (LAMS)
-7
Minimum bore diameter - inch (DMIN)
0.787
Minimum bore diameter - millimeter (DMIN)
20
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.571
Shank height - millimeter (H)
14.5
Shank width - inch (B)
0.591
Shank width - millimeter (B)
15
Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), left hand special tool style, steel without coolant hole, 16mm diameter x 180mm long for
