Pramet S20Q-SDZCR 11-93 6757156 Boring Bar ISO S - Right Hand
MODEL 6757156
$163.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Direction of tool
Right
Functional length - inch (LF)
7.087
Functional length - millimeter (LF)
180
Functional width - inch (WF)
0.866
Functional width - millimeter (WF)
22
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
1.378
Minimum bore diameter - millimeter (DMIN)
35
Ortogonal rake angle (GAMO)
0
Overall length - inch (OAL)
7.795
Overall length - millimeter (OAL)
198
Shank height - inch (H)
0.709
Shank height - millimeter (H)
18
Shank width - inch (B)
0.728
Shank width - millimeter (B)
18.5

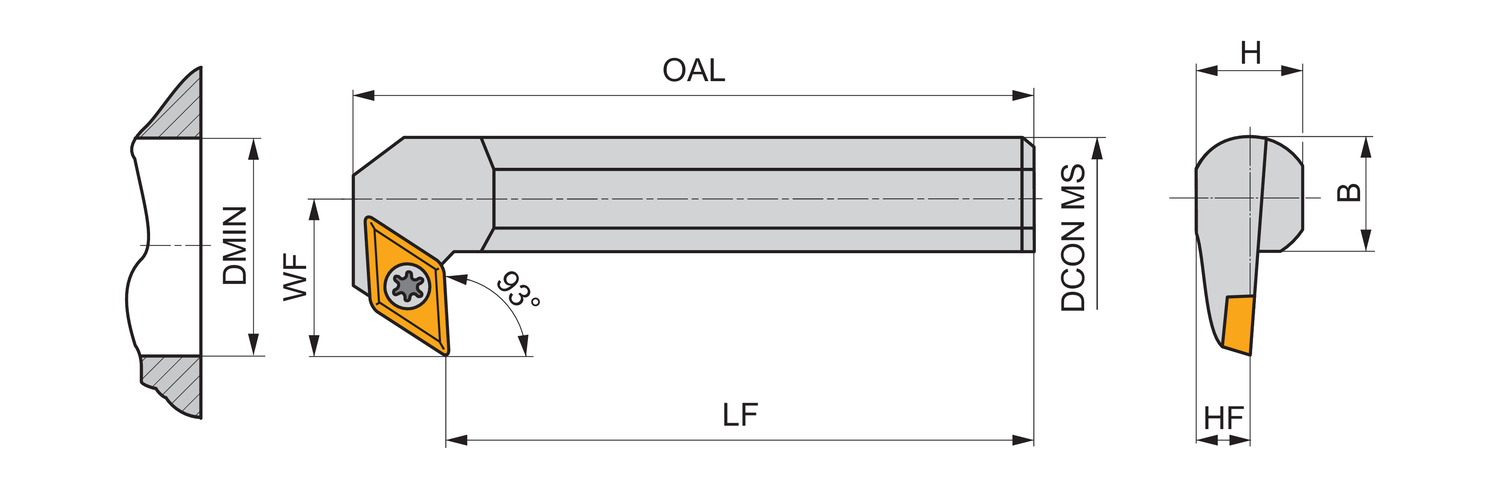

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand back cutting with off-set shank, steel without coolant hole, 20mm diameter x 180mm long for back chamfering
