Pramet S32S-SDZCR 11-93-A 6756647 Boring Bar ISO S - Right Hand
MODEL 6756647
$259.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

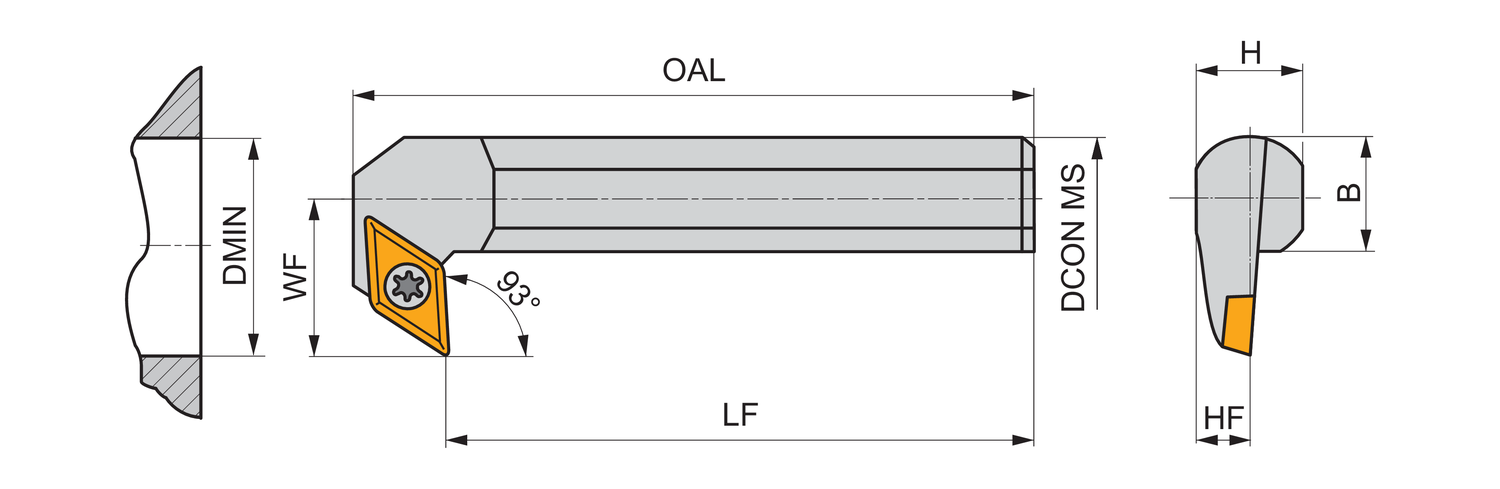

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Direction of tool
Right
Functional length - inch (LF)
9.843
Functional length - millimeter (LF)
250
Functional width - inch (WF)
1.378
Functional width - millimeter (WF)
35
Inclination angle (LAMS)
-6
Minimum bore diameter - inch (DMIN)
2.087
Minimum bore diameter - millimeter (DMIN)
53
Ortogonal rake angle (GAMO)
0
Overall length - inch (OAL)
10.551
Overall length - millimeter (OAL)
268
Shank height - inch (H)
1.181
Shank height - millimeter (H)
30
Shank width - inch (B)
1.181
Shank width - millimeter (B)
30
Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand back cutting with off-set shank, steel without coolant hole, 32mm diameter x 250mm long for back chamfering
