Pramet SCLCL 10 CA-09 6757373 Turning Adjustable Cartridge ISO S
MODEL 6757373
$114.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

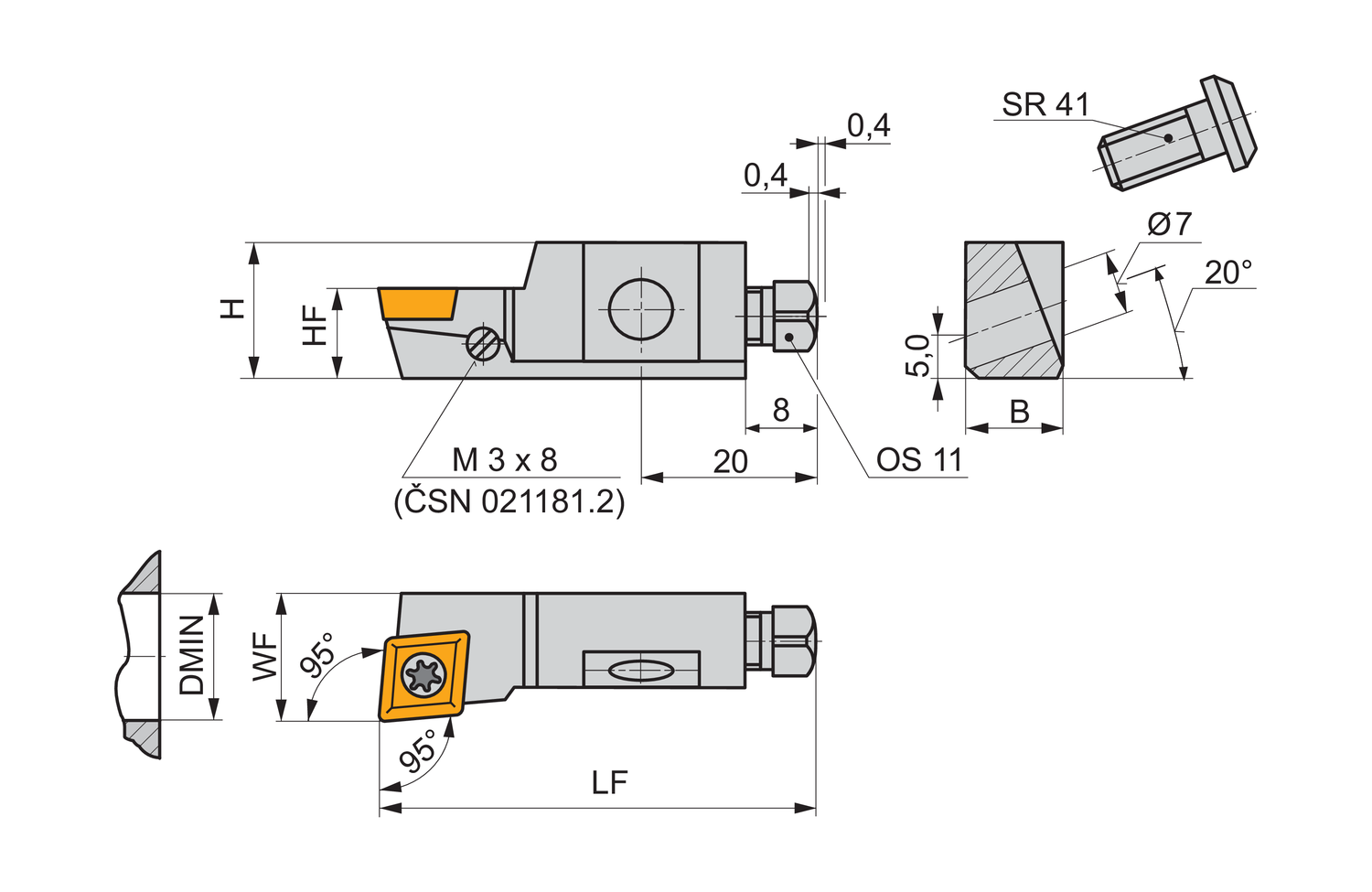

Clamping Type Code (MTP)
Screw clamping through hole
Functional height - inch (HF)
0.394
Functional height - millimeter (HF)
10
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
0.551
Functional width - millimeter (WF)
14
Inclination angle (LAMS)
0
Minimum bore diameter - inch (DMIN)
1.575
Minimum bore diameter - millimeter (DMIN)
40
Shank height - inch (H)
0.591
Shank height - millimeter (H)
15
Shank width - inch (B)
0.433
Shank width - millimeter (B)
11
ISO Turning cartridge with screw clamp for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), in accordance with DIN 4985 left hand 95° side and end cutting with off-set shank for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder as well as taper boring and longitudinal boring with and without shoulder
