Pramet SSKCL 10 CA-09 6757375 Turning Adjustable Cartridge ISO S
MODEL 6757375
$114.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

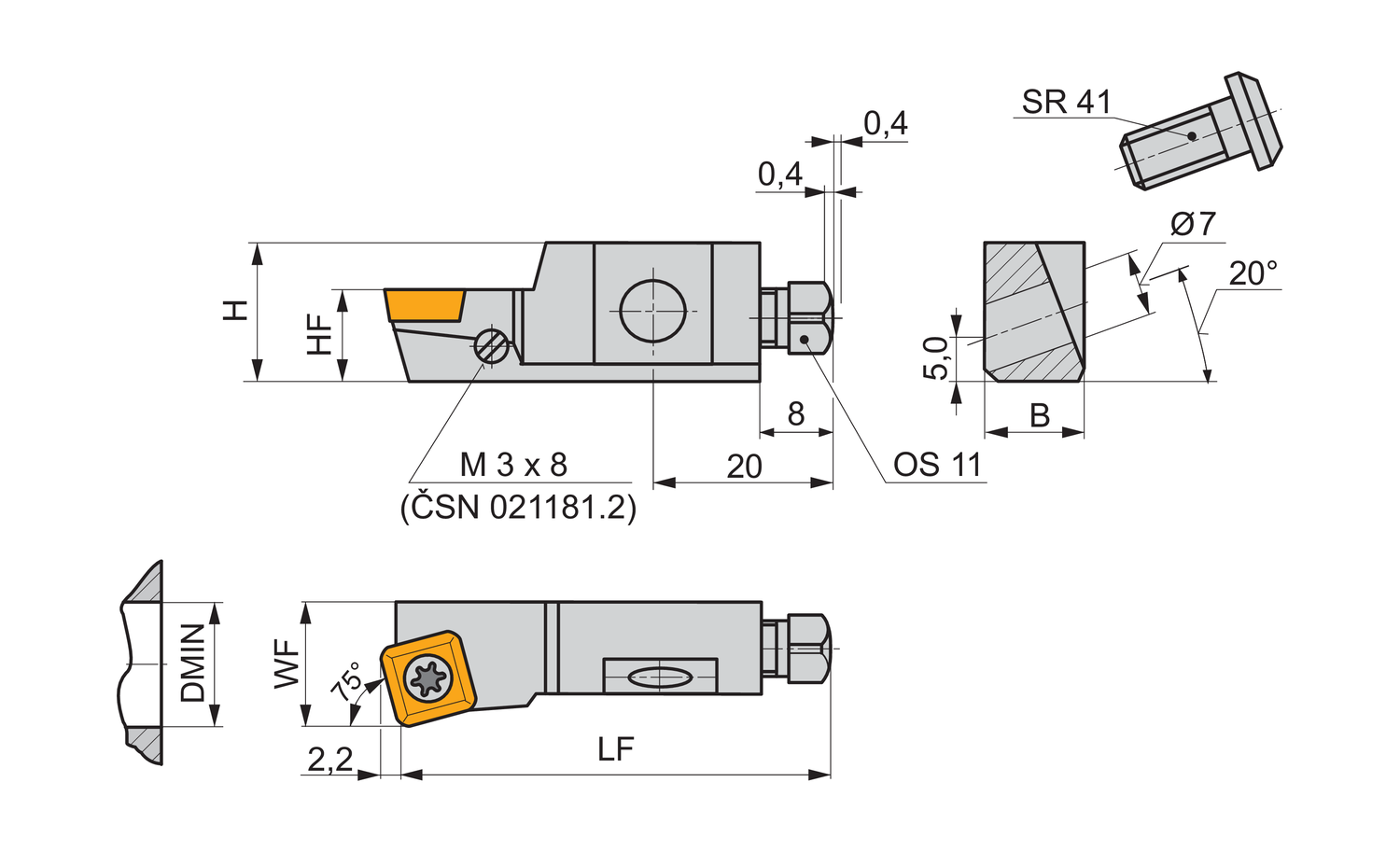

Clamping Type Code (MTP)
Screw clamping through hole
Functional height - inch (HF)
0.394
Functional height - millimeter (HF)
10
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
0.551
Functional width - millimeter (WF)
14
Inclination angle (LAMS)
0
Minimum bore diameter - inch (DMIN)
1.575
Minimum bore diameter - millimeter (DMIN)
40
Shank height - inch (H)
0.591
Shank height - millimeter (H)
15
Shank width - inch (B)
0.433
Shank width - millimeter (B)
11
ISO Turning cartridge with screw clamp for holding a square positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation SC.. 09T3.. ), in accordance with DIN 4985 left hand 75° end cutting with off-set shank for face turning without shoulder as well as longitudinal boring without shoulder
