Pramet C3-SDJCL-22040-11 7809833 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809833
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole

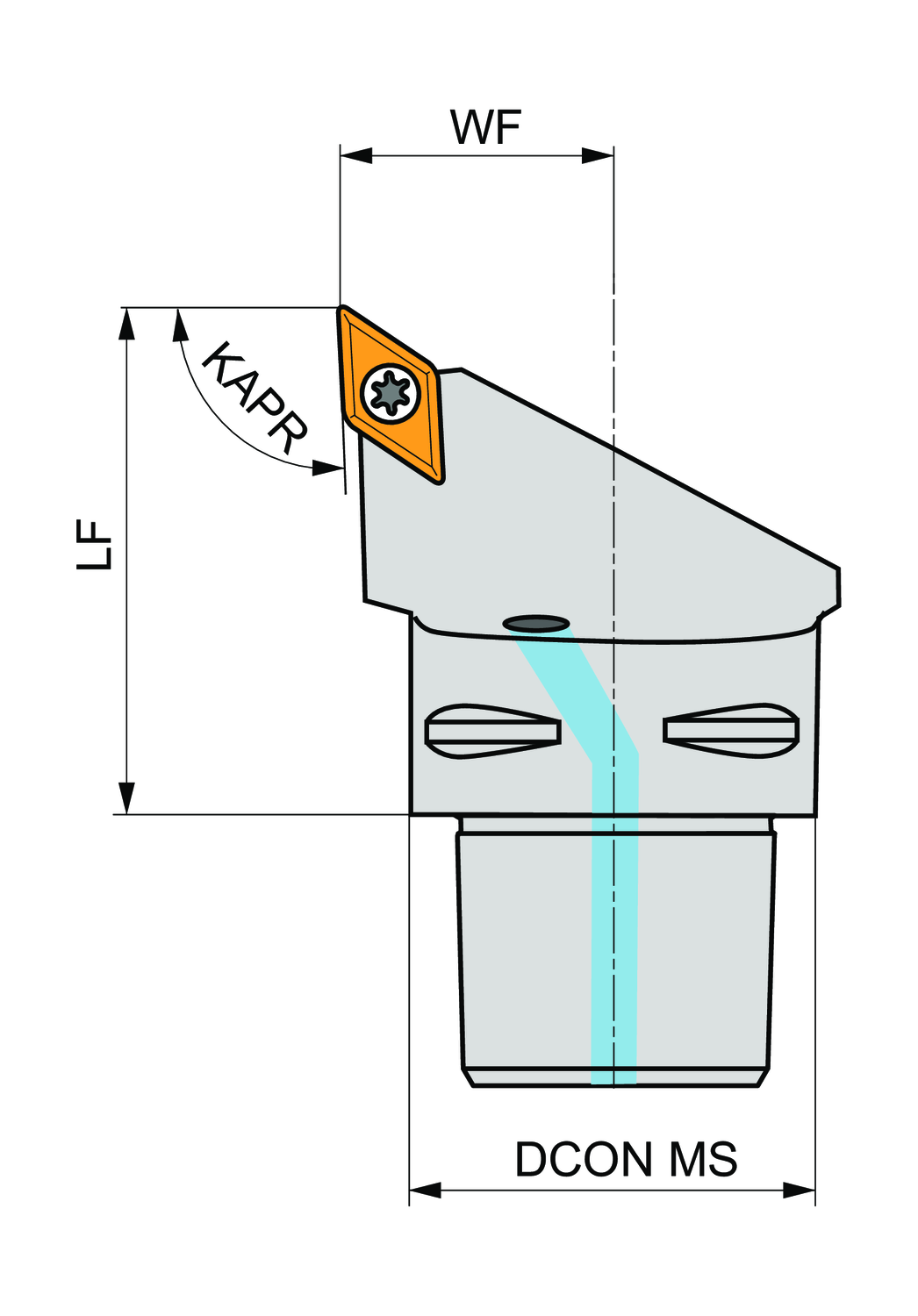

Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
1.575
Functional length - millimeter (LF)
40
Functional width - inch (WF)
0.866
Functional width - millimeter (WF)
22
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
93
Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), left hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C3, with 22mm funtional width and 40mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
