Image for Illustration purposes only. Actual product may vary
Pramet C4-DCLNR-13080-09 7809861 Turning Toolholder Polygon Shank Coupling ISO D - Internal
MODEL 7809861
$366.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

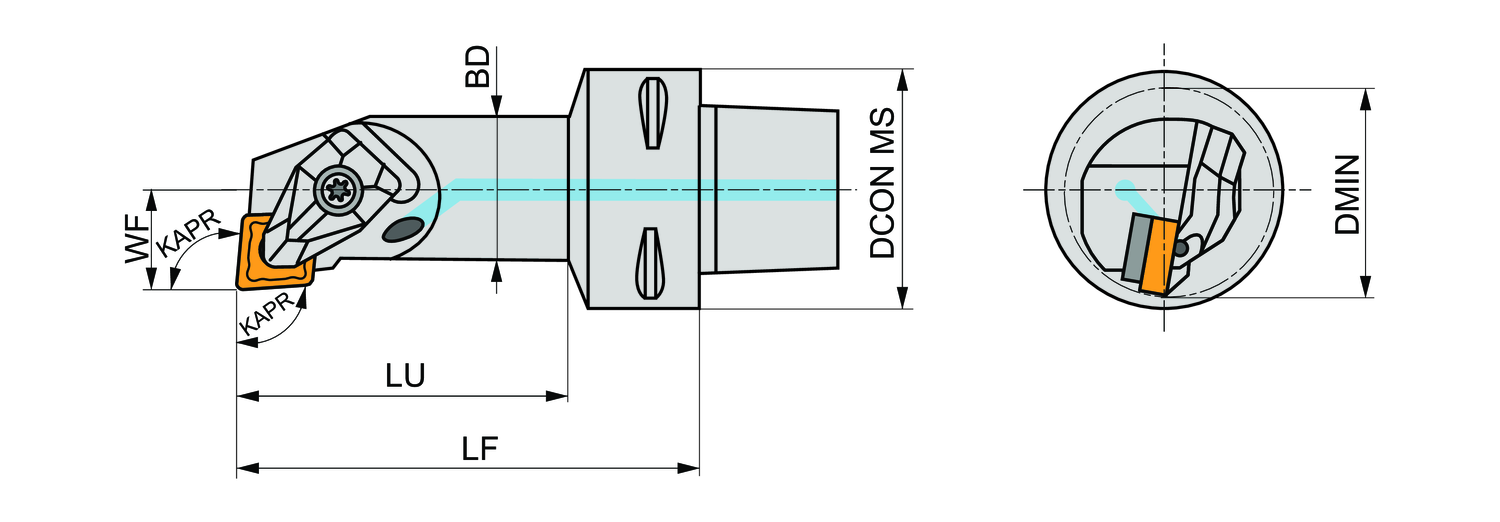

Body diameter - inch (BD)
0.787
Body diameter - millimeter (BD)
20
Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
3.15
Functional length - millimeter (LF)
80
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Inclination angle (LAMS)
-14
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
95
Usable Length - inch (LU)
2.244
Usable Length - millimeter (LU)
57
Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525mm, 3.18mm thick (ISO designation CN.. 0903.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 13mm funtional width and 80mm protruding length for taper boring and longitudinal boring with and without shoulder
