Pramet C4-SDUCL-13080-11 7809889 Turning Toolholder Polygon Shank Coupling ISO S - Internal
MODEL 7809889
$366.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

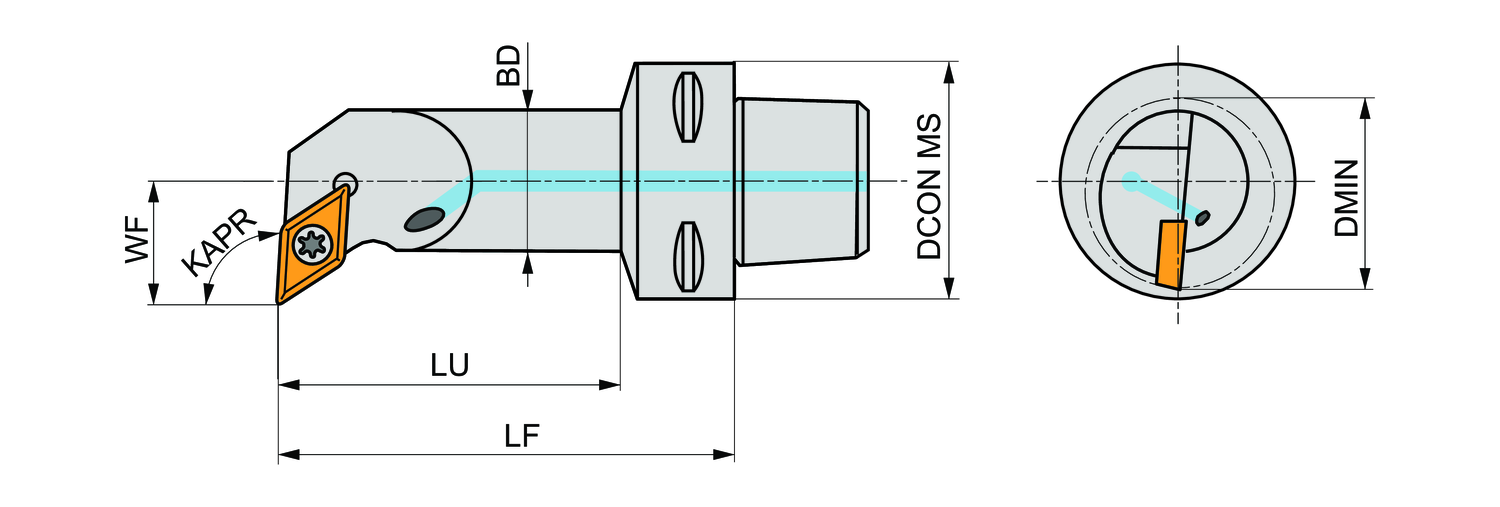

Body diameter - inch (BD)
0.787
Body diameter - millimeter (BD)
20
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
3.15
Functional length - millimeter (LF)
80
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Inclination angle (LAMS)
-5.8
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
93
Usable Length - inch (LU)
2.244
Usable Length - millimeter (LU)
57
Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), left hand 93° end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 13mm funtional width and 80mm protruding length for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder
