Image for Illustration purposes only. Actual product may vary
Pramet C4-SVQBL-18090-16 7809896 Turning Toolholder Polygon Shank Coupling ISO S - Internal
MODEL 7809896
$445.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

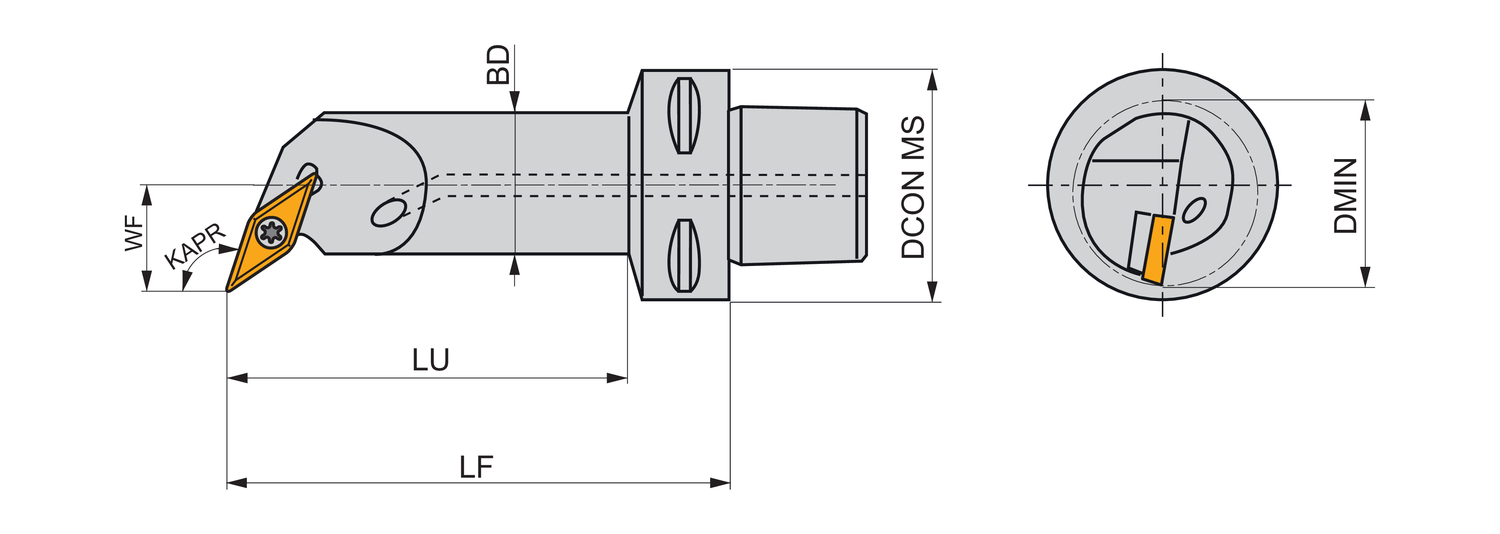

Body diameter - inch (BD)
0.984
Body diameter - millimeter (BD)
25
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
3.543
Functional length - millimeter (LF)
90
Functional width - inch (WF)
0.709
Functional width - millimeter (WF)
18
Inclination angle (LAMS)
-7.2
Minimum bore diameter - inch (DMIN)
1.299
Minimum bore diameter - millimeter (DMIN)
33
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
107.5
Usable Length - inch (LU)
2.677
Usable Length - millimeter (LU)
68
Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 107°30' end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 18mm funtional width and 90mm protruding length for single and multi-directional copy boring
