Pramet C5-SRDCN-00060-10A 7809841 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809841
$292.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

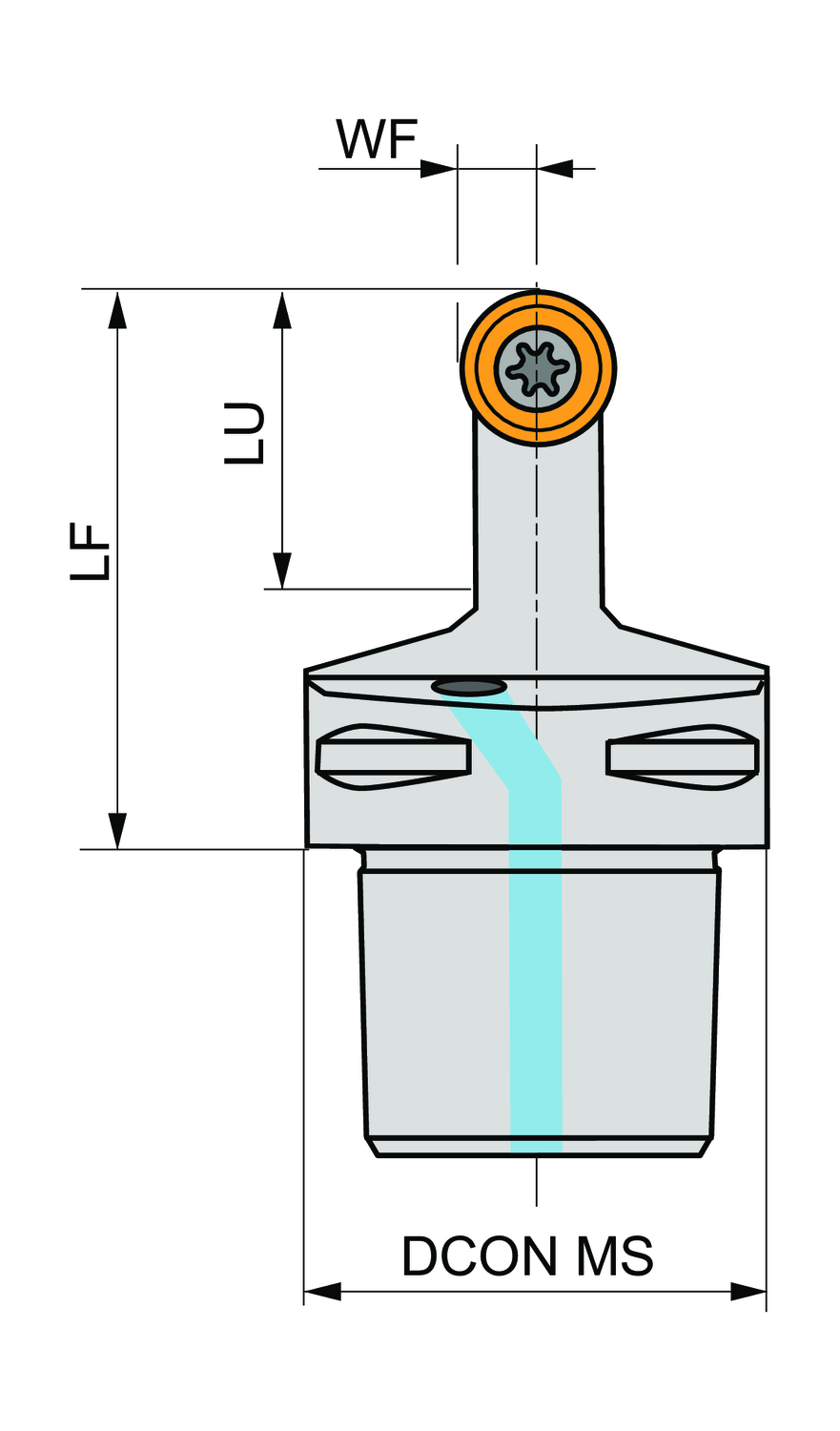

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Coolant supply property (CSP)
1
Direction of tool
Neutral
Functional length - inch (LF)
2.362
Functional length - millimeter (LF)
60
Functional width - inch (WF)
0.197
Functional width - millimeter (WF)
5
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
25
Usable Length - inch (LU)
0.984
Usable Length - millimeter (LU)
25
Screw clamp turning tool for holding a round positive insert with a diameter of 10mm, 3.97mm thick (ISO designation RC.. 10T3MO ), neutral hand side and end cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 60mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
