Pramet C6-DSRNR-35065-19 7809798 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809798
$335.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

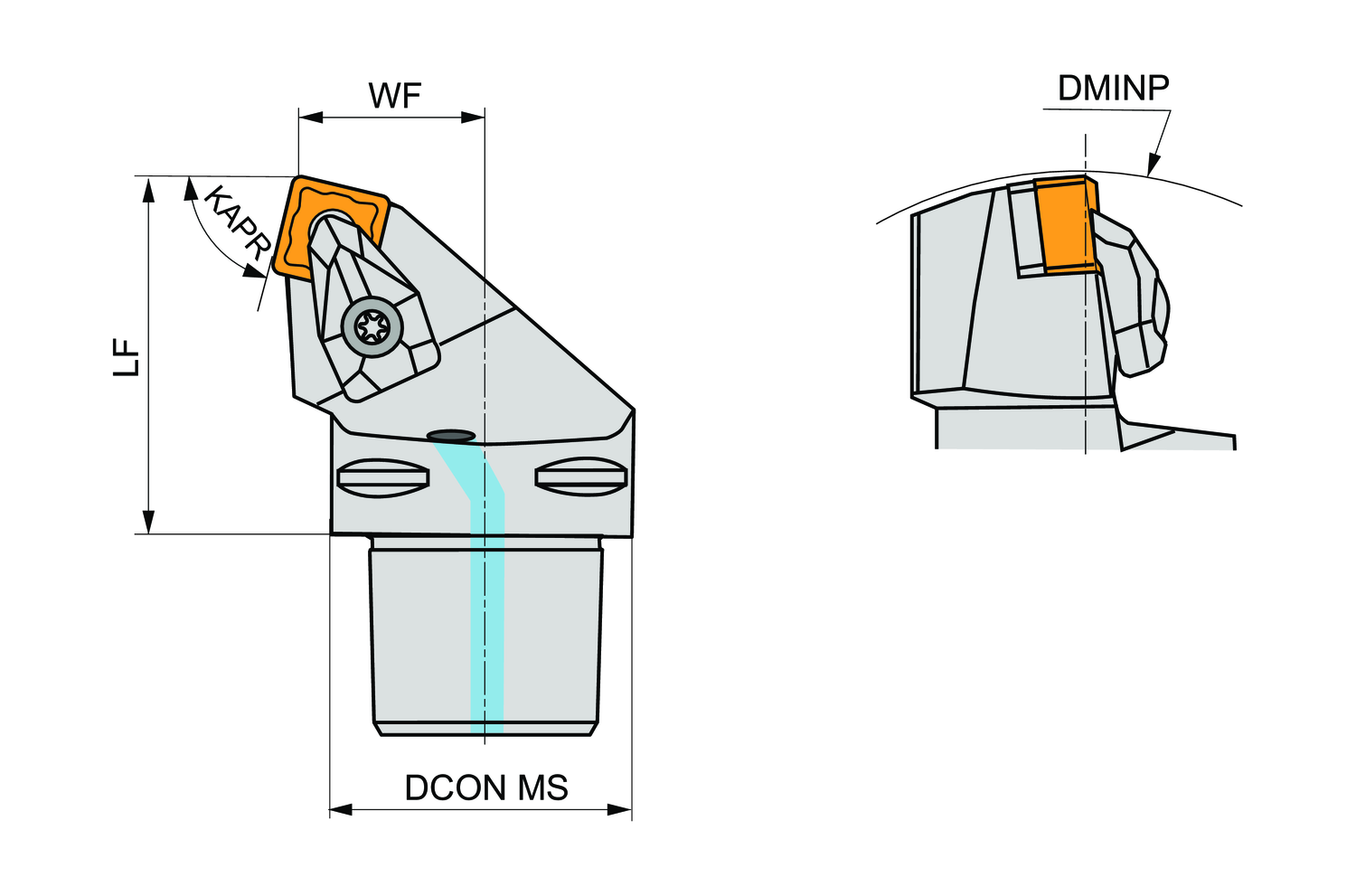

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
2.48
Connection diameter - millimeter (DCON MS)
63
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
2.559
Functional length - millimeter (LF)
65
Functional width - inch (WF)
1.378
Functional width - millimeter (WF)
35
Inclination angle (LAMS)
-6
Minimum bore diameter Perpendicular - millimeter (DMINP)
190
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
75
Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), right hand 75° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 35mm funtional width and 65mm protruding length for taper turning and longitudinal turning without shoulder
