Image for Illustration purposes only. Actual product may vary
Pramet C6-SVHBL-45065-16 7809848 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809848
$408.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole

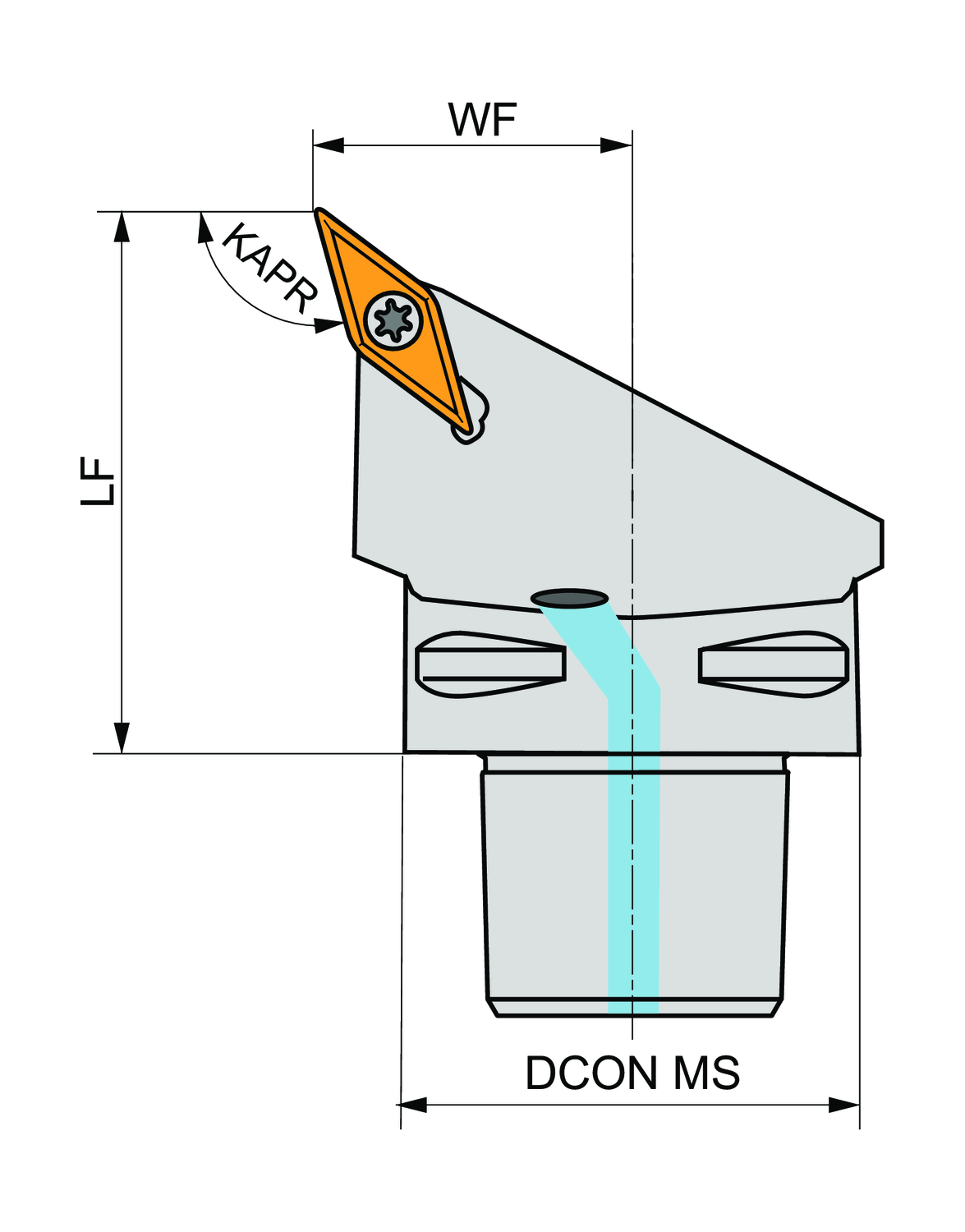

Connection diameter - inch (DCON MS)
2.48
Connection diameter - millimeter (DCON MS)
63
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
2.559
Functional length - millimeter (LF)
65
Functional width - inch (WF)
1.772
Functional width - millimeter (WF)
45
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
107.5
Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 107°30' side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
