Pramet CKJNL 2525 M 16 6756896 Turning Toolholder ISO C
MODEL 6756896
$163.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

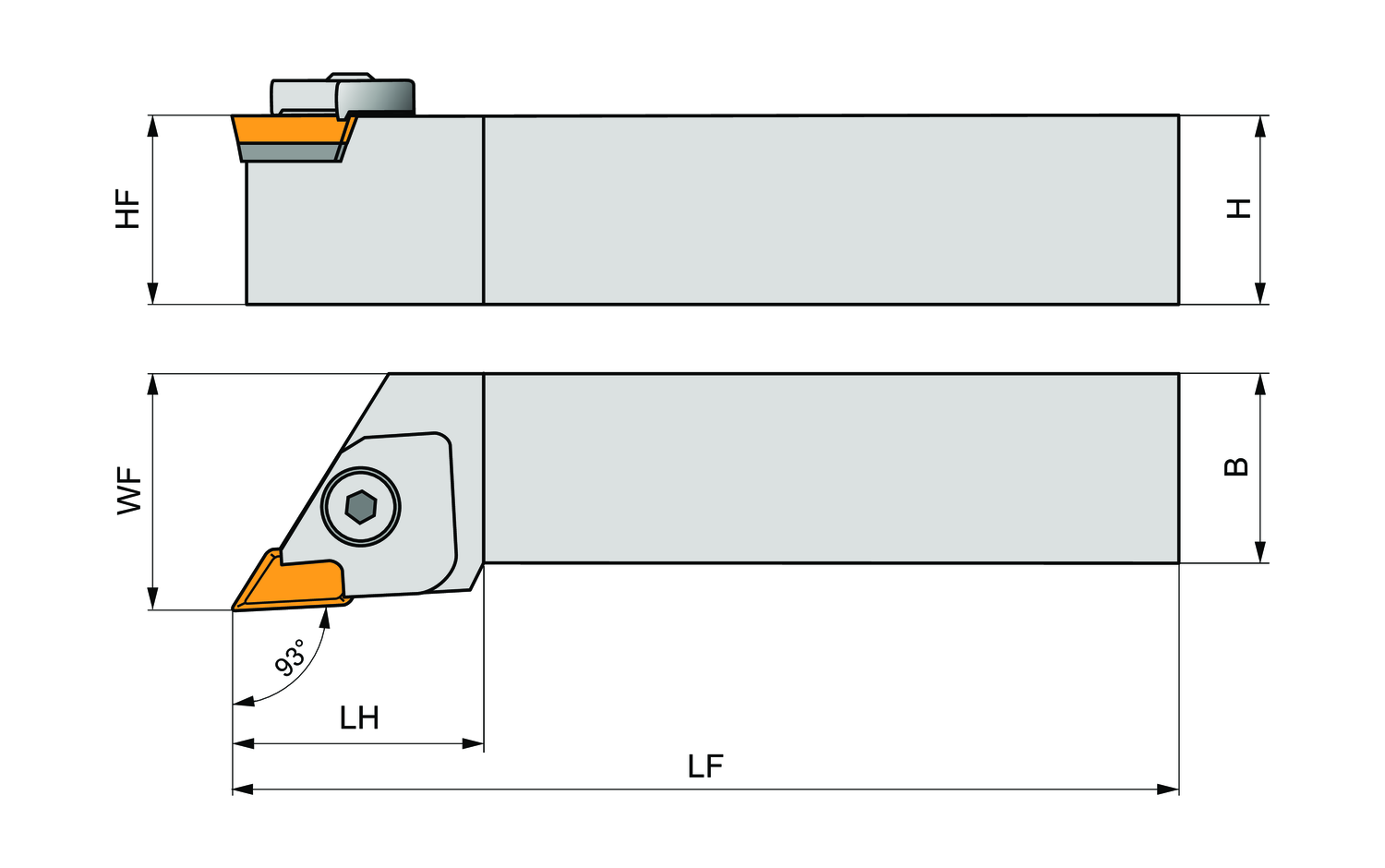

Clamping Type Code (MTP)
Top clamping
Direction of tool
Left
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
1.26
Functional width - millimeter (WF)
32
Head length - inch (LH)
1.339
Head length - millimeter (LH)
34
Inclination angle (LAMS)
1
Ortogonal rake angle (GAMO)
-5
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Top clamp turning tool for holding a 55° parallelogram, negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation KN.X 1604…L ), left hand 93° side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
