Pramet DDJNR 16 4D 6788572 Turning Toolholder ISO D
MODEL 6788572
$118.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
System D
Direction of tool
Right

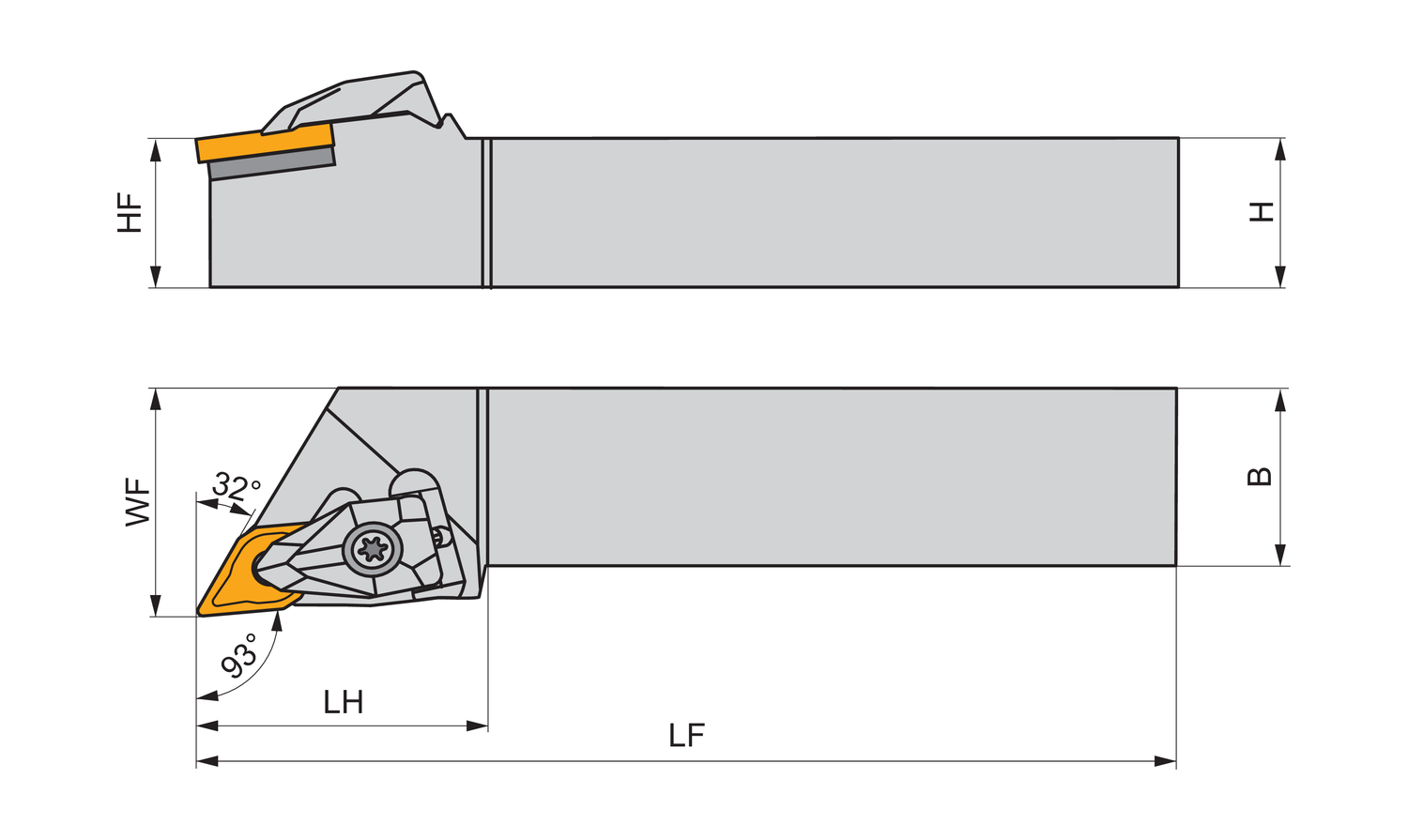

Functional height - inch (HF)
1
Functional length - inch (LF)
6
Functional width - inch (WF)
1.25
Hand (Cutting direction)
Right
Head length - inch (LH)
1.55
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank width - inch (B)
1
Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation DN.. 43. ), right hand 93° side cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
