Pramet DVPNR 2525 M 16 7028471 Turning Toolholder ISO D
MODEL 7028471
$143.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

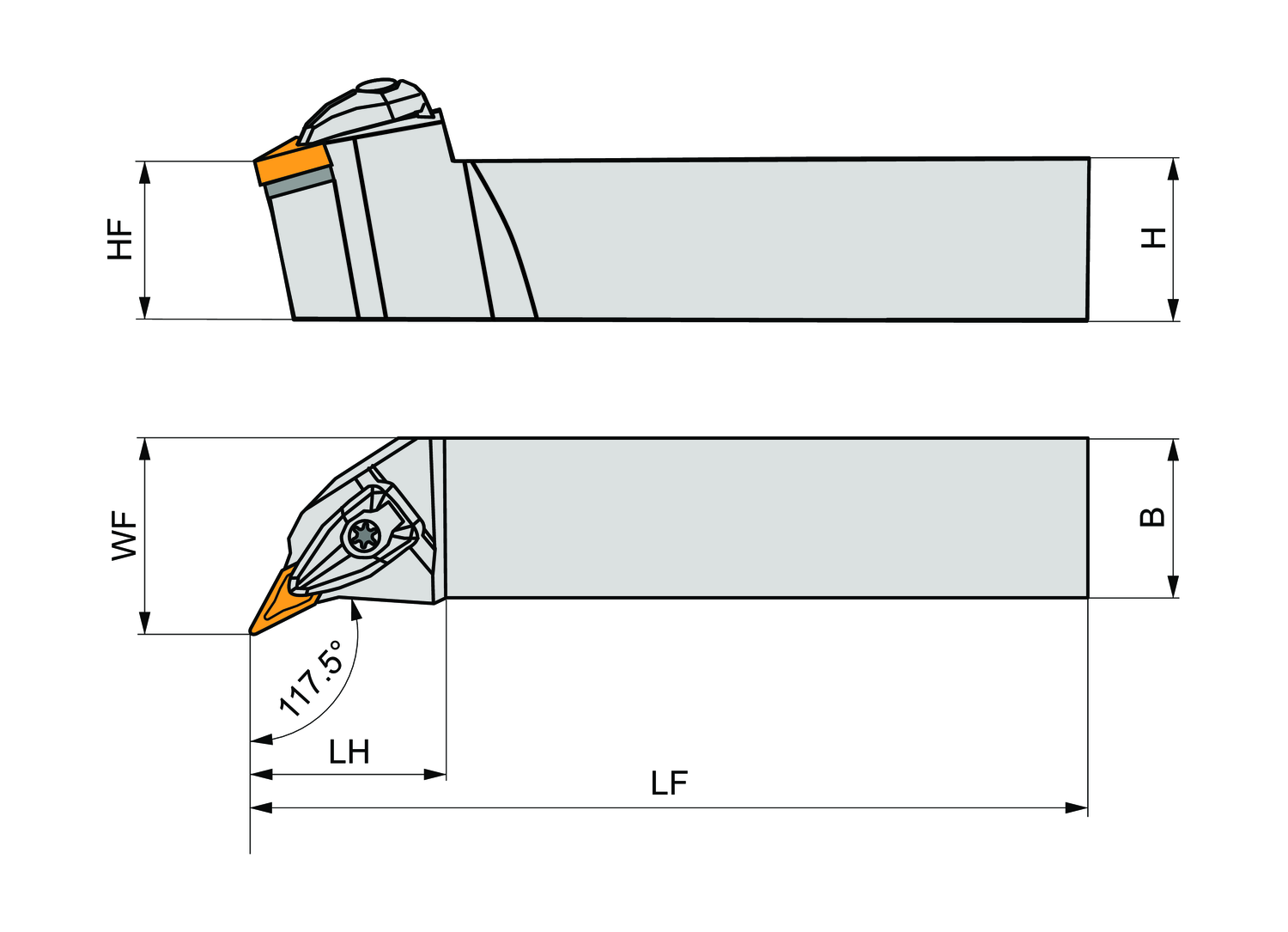

Clamping Type Code (MTP)
System D
Direction of tool
Right
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
1.26
Functional width - millimeter (WF)
32
Head length - inch (LH)
1.543
Head length - millimeter (LH)
39.2
Inclination angle (LAMS)
-13
Ortogonal rake angle (GAMO)
-4
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Double clamp turning tool for holding a 35° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VN.. 1604.. ), right hand 62.5°, left and right side cutting, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
