Pramet KHP-CBNR 25 6758293 Turning Head - Heavy Duty
MODEL 6758293
$305.65 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Hole clamping
Direction of tool
Right

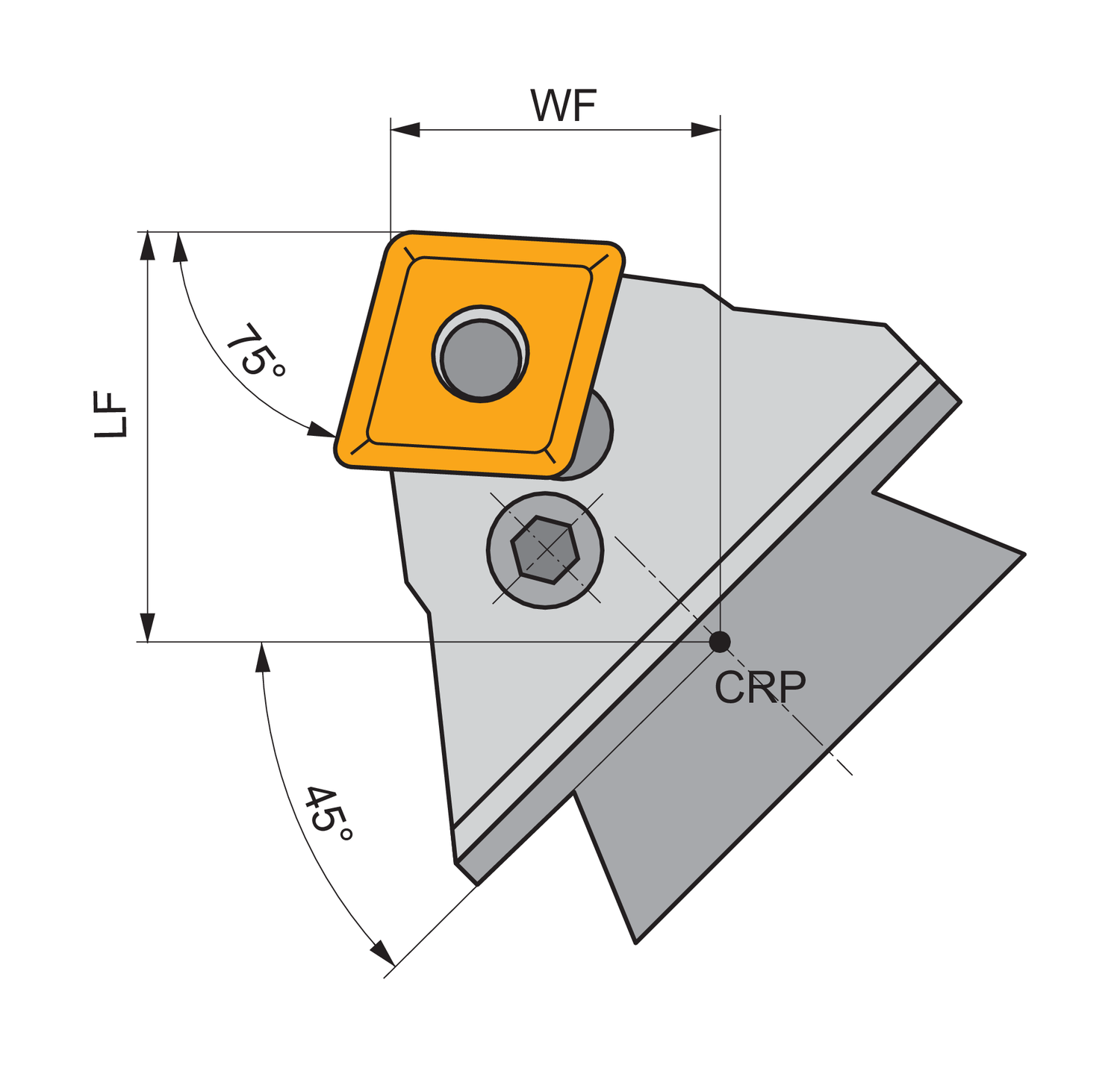

Functional length - inch (LF)
1.85
Functional length - millimeter (LF)
47
Functional width - inch (WF)
1.26
Functional width - millimeter (WF)
32
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Lever lock modular turning tool cartridge for holding a 80° rhombus negative insert with an inscribed circle diameter of 25.4mm, 9.52mm thick (ISO designation CN.. 2509.. ), assemble with DHKR.. for right hand 75° side cutting with straight shank for taper turning, face turning without shoulder and longitudinal turning without shoulder
