Pramet SSKCR 1616 H 09 6756840 Turning Toolholder ISO S
MODEL 6756840
$101.53 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

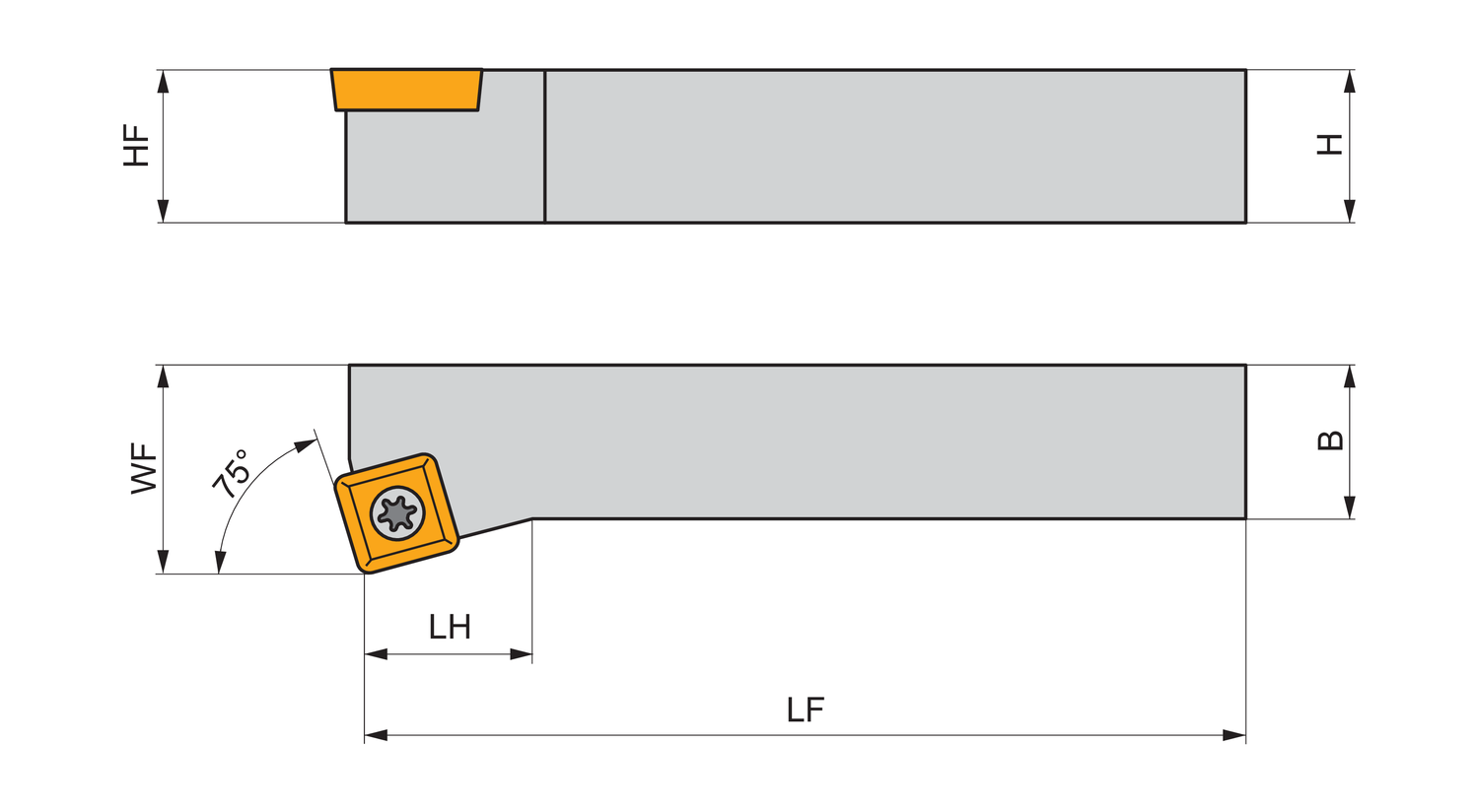

Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Right
Functional height - inch (HF)
0.63
Functional height - millimeter (HF)
16
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.787
Functional width - millimeter (WF)
20
Head length - inch (LH)
1.26
Head length - millimeter (LH)
32
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.63
Shank height - millimeter (H)
16
Shank width - inch (B)
0.63
Shank width - millimeter (B)
16
Screw clamp turning tool for holding a square positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation SC.. 09T3.. ), right hand 75° end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for face turning without shoulder
