Pramet X61 0602-R100 R:6640 7721654 Turning Insert - Grooving
MODEL 7721654
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$27.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
6640
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

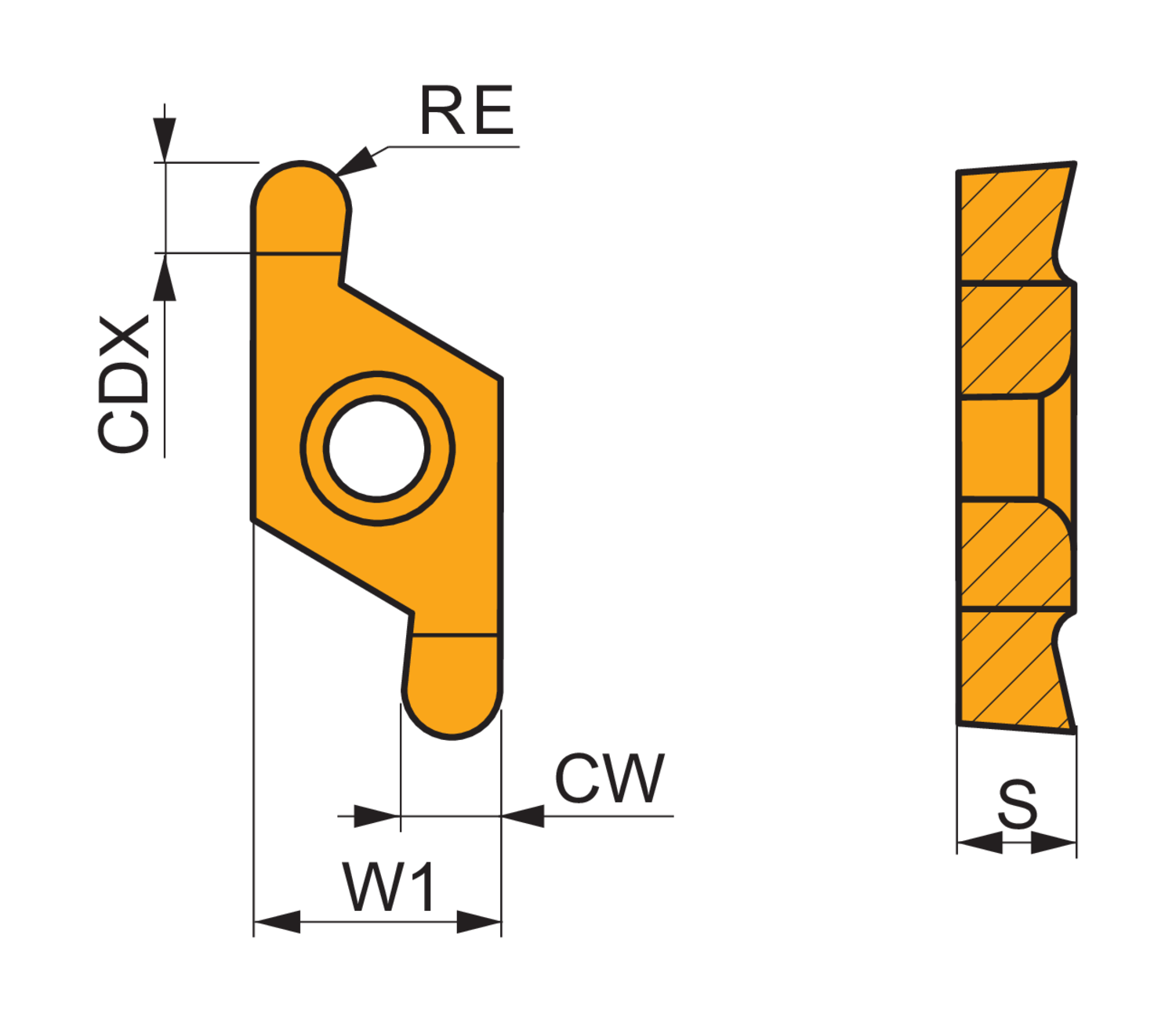

Corner radius - inch (RE)
0.039
Corner radius - millimeter (RE)
1
Cutting depth maximum - inch (CDX)
0.118
Cutting depth maximum - millimeter (CDX)
3
Cutting width - inch (CW)
0.082
Cutting width - millimeter (CW)
2.09
Cutting width lower tolerance - inch (CWTOLL)
-0.001
Cutting width lower tolerance - millimeter (CWTOLL)
-0.03
Cutting width upper tolerance - inch (CWTOLU)
0.001
Cutting width upper tolerance - millimeter (CWTOLU)
0.03
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.092
Insert thickness - millimeter (S)
2.33
Insert width - inch (W1)
0.25
Insert width - millimeter (W1)
6.35
Double ended o-ring grooving insert, with a 2.09mm cutting width and 1mm full radius, a cutting width tolerance of ± 0.03mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools
