Pramet TN 16NL120UN:T8030 6755296 Threading Insert Internal Full Profile - 60° UN-thread
MODEL 6755296
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$25.16 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8030
Coating property (CTP)
1

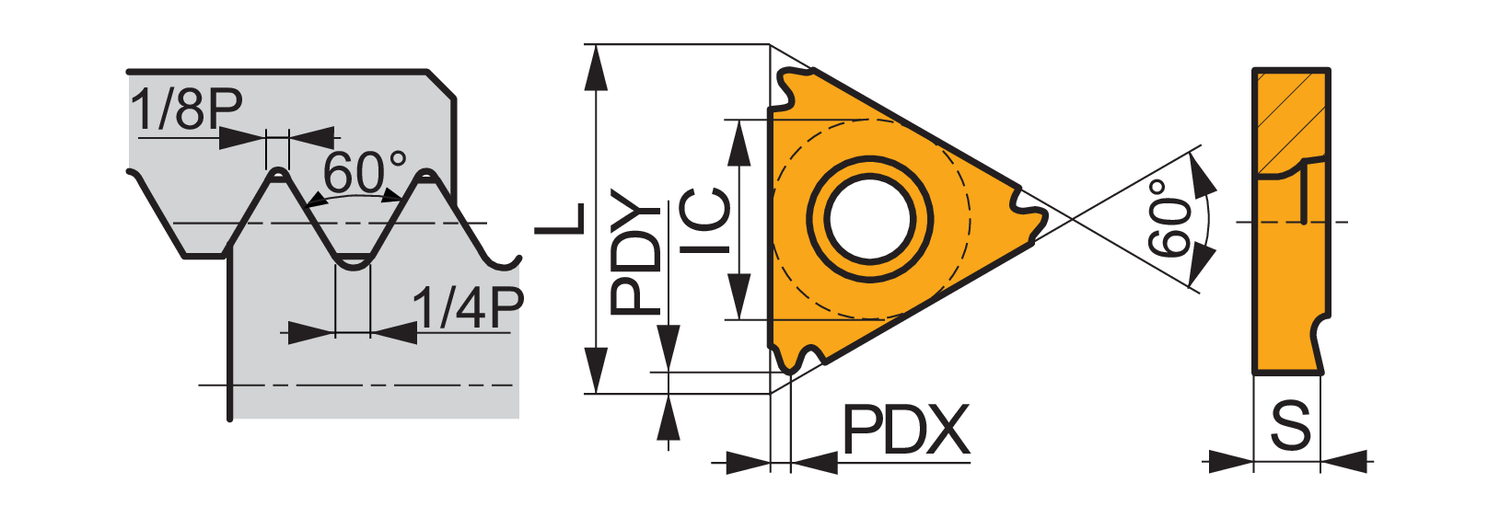

Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.137
Insert thickness - millimeter (S)
3.47
Package Quantity
5
Profile distance ex - inch (PDX)
0.059
Profile distance ex - millimeter (PDX)
1.5
Profile distance ey - inch (PDY)
0.047
Profile distance ey - millimeter (PDY)
1.2
Thread type (TTP)
internal
Threads per inch (TPI)
12
Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for left hand cutting of UN internal threads with 12TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron
