Image for Illustration purposes only. Actual product may vary

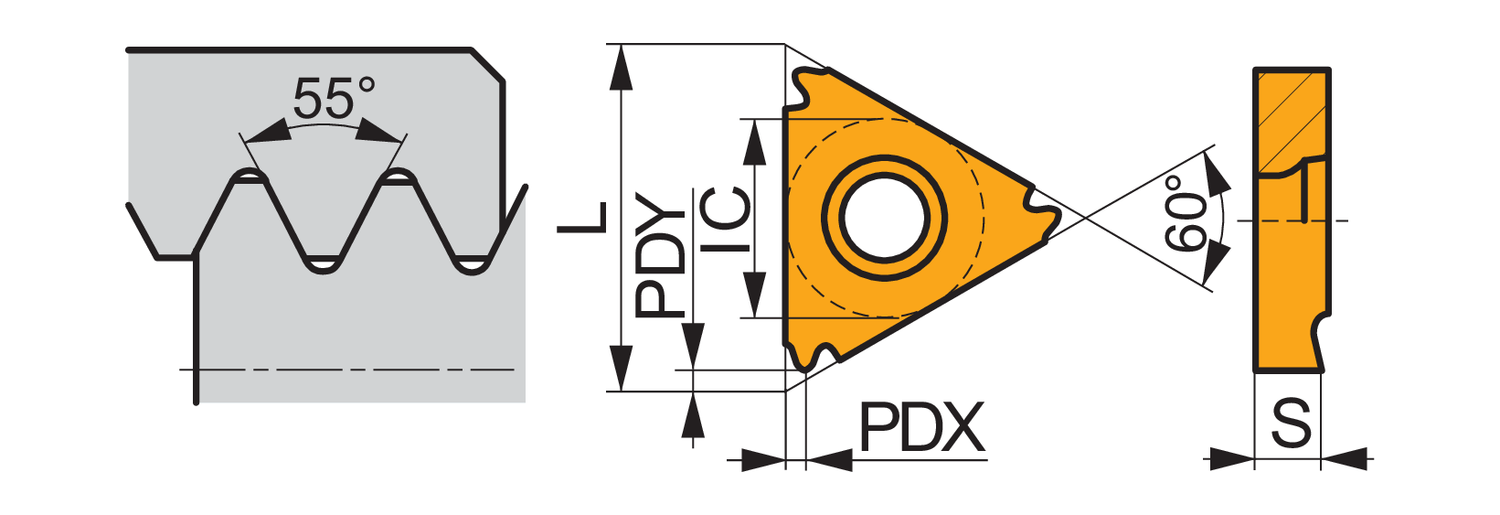

Pramet TN 16NRAG55:T8010 7575318 Threading Insert Internal Partial Profile - 55° Whitworth Thread
MODEL 7575318
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$23.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8010
Coating property (CTP)
1
Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.137
Insert thickness - millimeter (S)
3.47
Package Quantity
5
Profile distance ex - inch (PDX)
0.059
Profile distance ex - millimeter (PDX)
1.5
Profile distance ey - inch (PDY)
0.043
Profile distance ey - millimeter (PDY)
1.1
Thread pitch maximum - inch (TPX)
0.1181
Thread pitch maximum - millimeter (TPX)
3
Thread pitch minimum - inch (TPN)
0.0197
Thread pitch minimum - millimeter (TPN)
0.5
Thread type (TTP)
internal
Threads per inch - maximum
48
Threads per inch - minimum
8
Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for right hand cutting partial profile of British Standard internal threads with 48 to 8TPI, T8010 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges P05-P15/M01-M15 and K05-K15 for machining of steel, stainless-steel and cast-iron
