Pramet TN 16NRAG60:T8010 7575367 Threading Insert Internal Partial Profile - 60° ISO-metric thread
MODEL 7575367
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$23.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8010
Coating property (CTP)
1

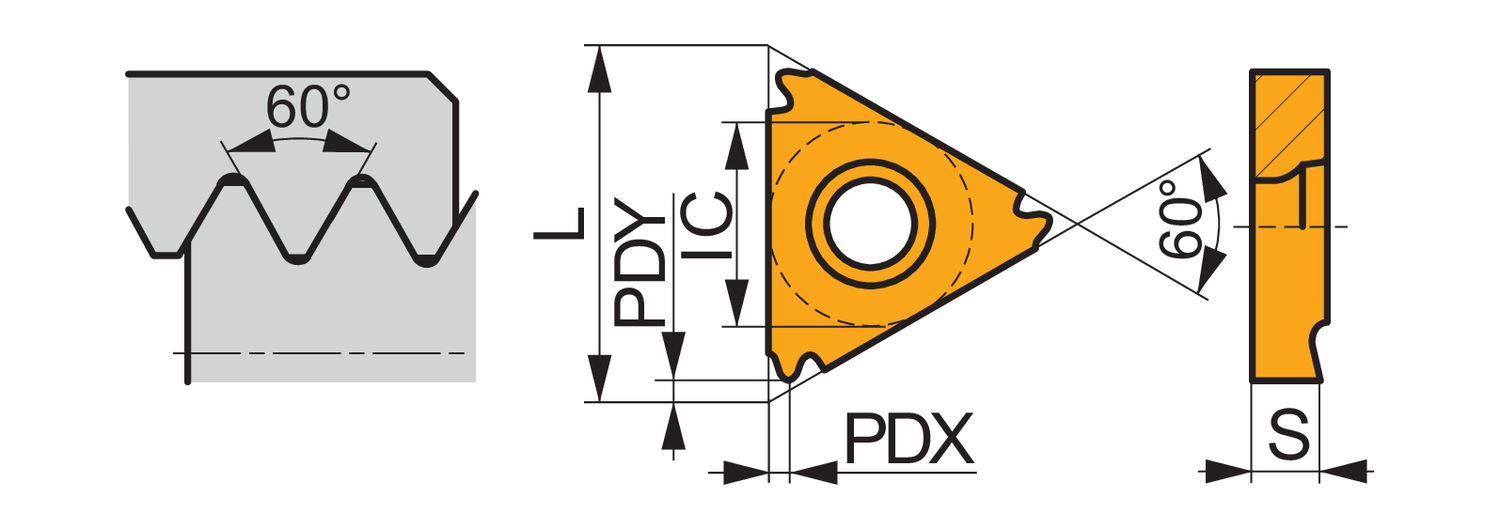

Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.137
Insert thickness - millimeter (S)
3.47
Package Quantity
5
Profile distance ex - inch (PDX)
0.059
Profile distance ex - millimeter (PDX)
1.5
Profile distance ey - inch (PDY)
0.043
Profile distance ey - millimeter (PDY)
1.1
Thread pitch maximum - inch (TPX)
0.1181
Thread pitch maximum - millimeter (TPX)
3
Thread pitch minimum - inch (TPN)
0.0197
Thread pitch minimum - millimeter (TPN)
0.5
Thread type (TTP)
internal
Threads per inch - maximum
48
Threads per inch - minimum
8
Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for right hand cutting partial profile of ISO-metric and UN internal threads with 0.5 to 3mm pitch and 48 to 8TPI, T8010 PVD coated extra fine grained WC-Co carbide within ISO-grade ranges P05-P15/M01-M15 and K05-K15 for machining of steel, stainless-steel and cast-iron
