Pramet TN 22EN550-800M:T8030 6755658 Threading Insert External Partial Profile - 60° ISO-metric thread
MODEL 6755658
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$33.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8030
Coating property (CTP)
1

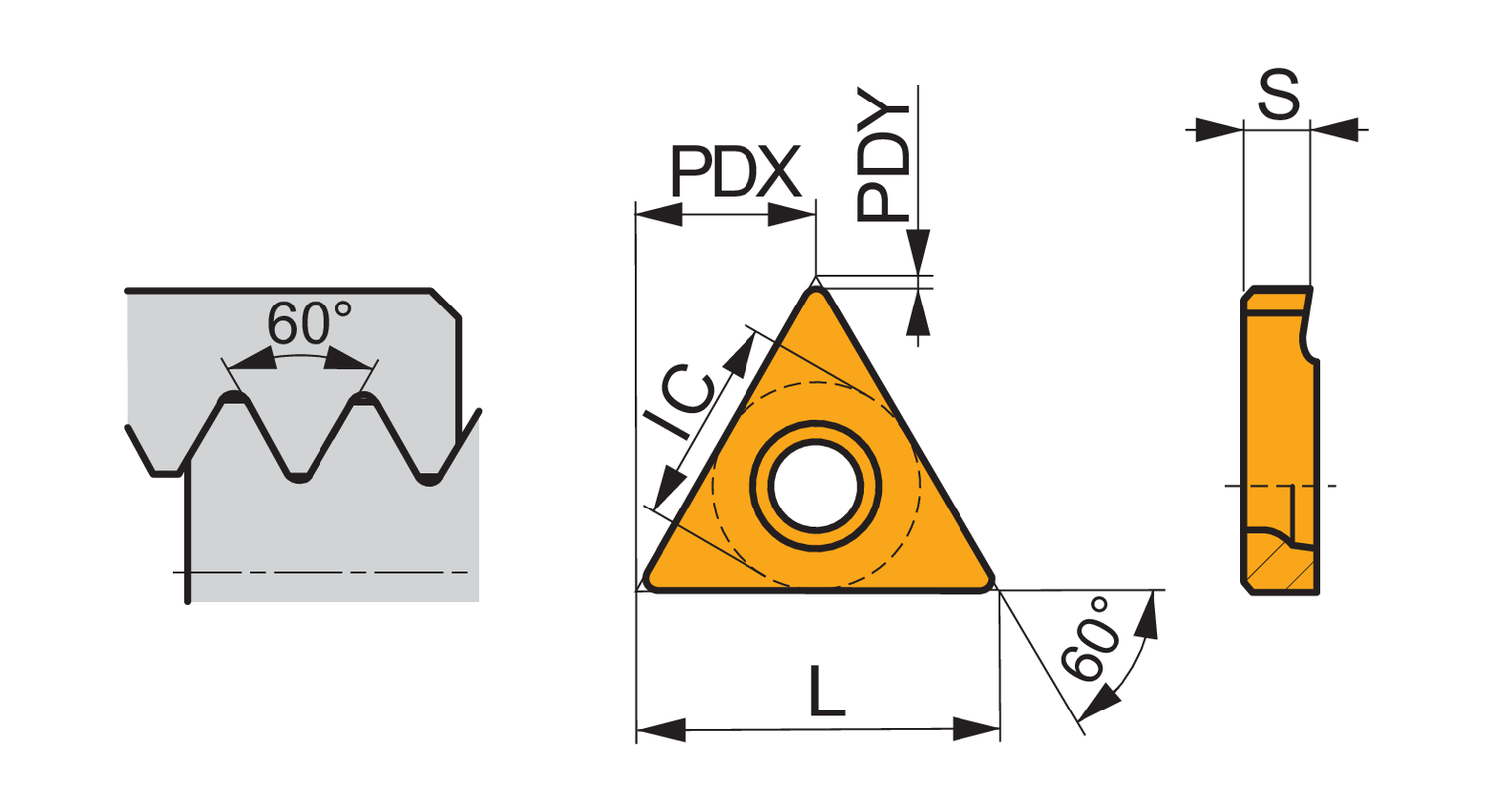

Cutting edge length - inch (L)
0.866
Cutting edge length - millimeter (L)
22
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.181
Insert thickness - millimeter (S)
4.6
Package Quantity
5
Profile distance ex - inch (PDX)
0.4331
Profile distance ex - millimeter (PDX)
11
Profile distance ey - inch (PDY)
0.0315
Profile distance ey - millimeter (PDY)
0.8
Thread pitch maximum - inch (TPX)
0.315
Thread pitch maximum - millimeter (TPX)
8
Thread pitch minimum - inch (TPN)
0.2165
Thread pitch minimum - millimeter (TPN)
5.5
Thread type (TTP)
external
Threads per inch - maximum
4.5
Threads per inch - minimum
3
Single-sided threading insert, triangular with an inscribed circle diameter of 12.7mm, for right and left hand cutting partial profile of ISO-metric and UN external threads with 5.5 to 8mm pitch and 4.5 to 3TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron in combination with a SE(RL)-S thread turning tool
