Pramet GFML 2020 K 0416 6760366 Turning Toolholder - Parting And Grooving
MODEL 6760366
$143.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

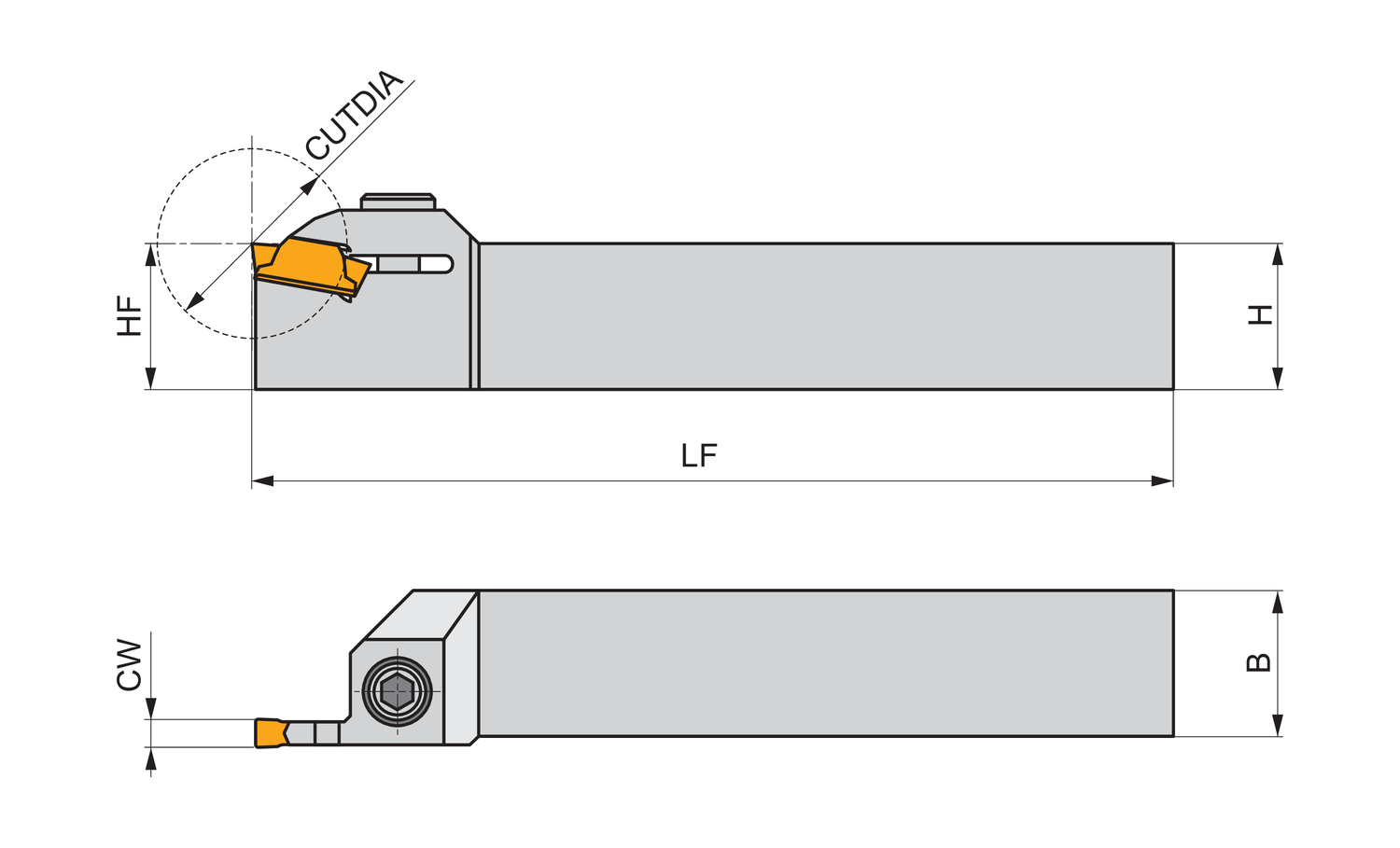

Clamping Type Code (MTP)
System G
Cutting width - inch (CW)
0.1575
Cutting width - millimeter (CW)
4
Direction of tool
Left
Functional height - inch (HF)
0.787
Functional height - millimeter (HF)
20
Functional length - inch (LF)
4.921
Functional length - millimeter (LF)
125
Insert group used in the tool
LCM. 0416..
Primary use
Medium machining
Shank height - inch (H)
0.787
Shank height - millimeter (H)
20
Shank width - inch (B)
0.787
Shank width - millimeter (B)
20
Work piece parting diameter maximum - inch (CUTDIA)
1.5748
Work piece parting diameter maximum - millimeter (CUTDIA)
40
Top clamp grooving tool for holding a 16.4mm long double or single ended insert with 4mm cutting width (designation LCM.
0416.. ), left handed with insert parallel to the shank for a maximum parting diameter of 40mm, shank height 20mm, width 20mm and tool length 125mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off
