Pramet P61.SGL-0010M-06/1 7725310 Internal Circlip Grooving Boring Bar For X61-1 Inserts
MODEL 7725310
$137.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

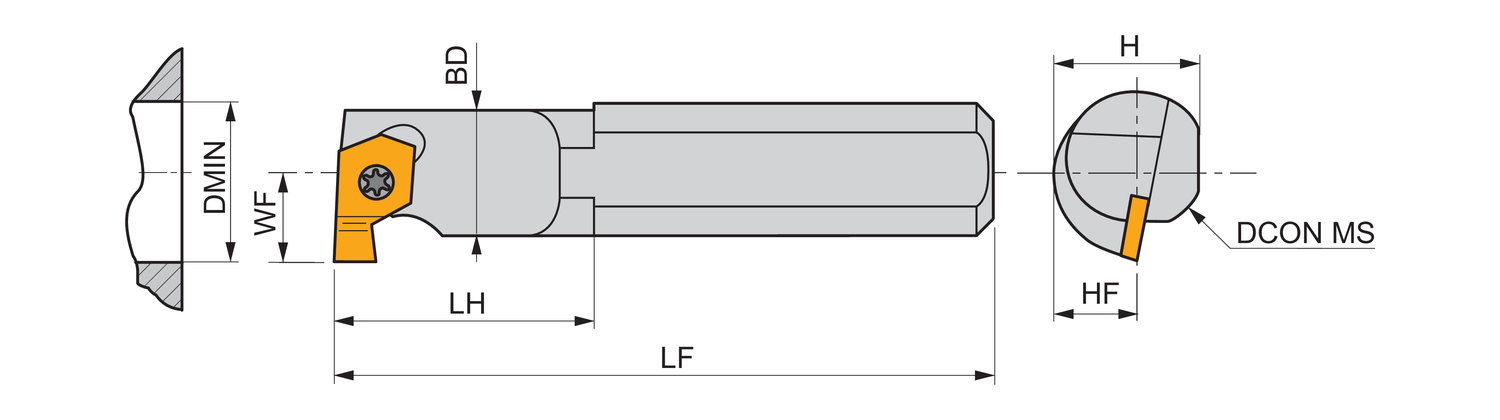

Body diameter - inch (BD)
0.394
Body diameter - millimeter (BD)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Direction of tool
Left
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.295
Functional width - millimeter (WF)
7.5
Head length - inch (LH)
0.748
Head length - millimeter (LH)
19
Insert group used in the tool
X61 0602..-1
Minimum bore diameter - inch (DMIN)
0.492
Minimum bore diameter - millimeter (DMIN)
12.5
Possible use
Medium machining
Primary use
Finishing
Shank height - inch (H)
0.354
Shank height - millimeter (H)
9
Tool cutting edge angle (KAPR)
0
Screw clamp grooving bar for holding a single ended insert with 0.85-2.20mm cutting width (designation X61 0602..-1 ), left handed with insert perpendicular to the shank, shank diameter 10mm and tool length 150mm for internal grooving
