Pramet XLCFN 4503 S 4.00 6756569 Blade For Parting And Grooving
MODEL 6756569
$170.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

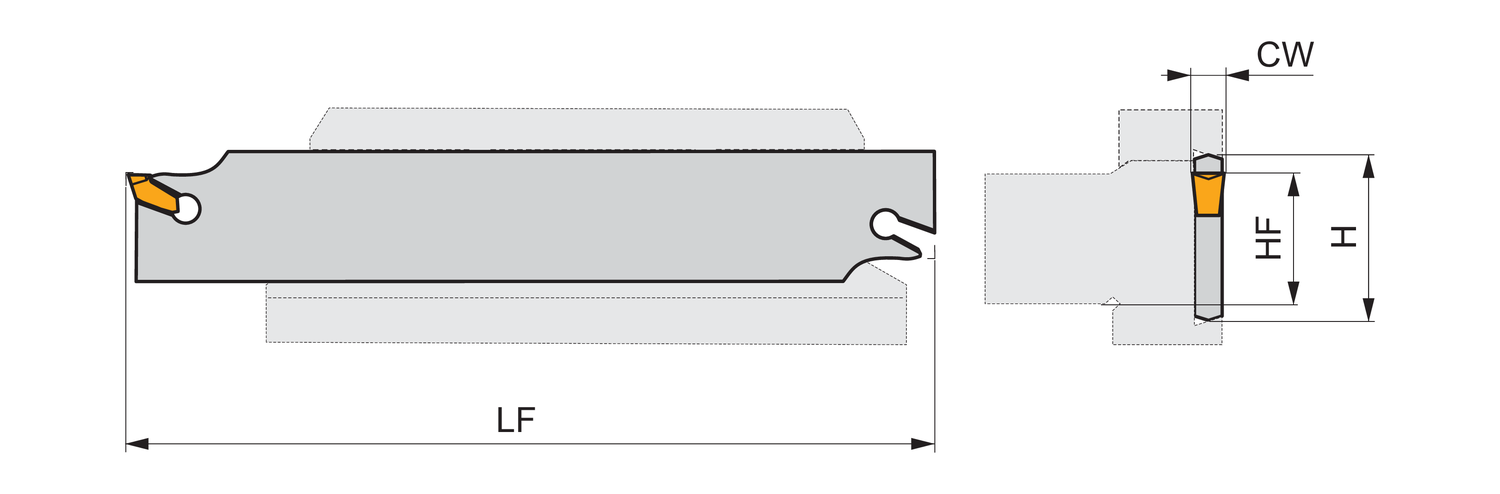

Clamping Type Code (MTP)
System X
Cutting depth maximum - inch (CDX)
3.15
Cutting depth maximum - millimeter (CDX)
80
Cutting width - inch (CW)
0.161
Cutting width - millimeter (CW)
4.1
Direction of tool
Neutral
Functional height - inch (HF)
1.26
Functional height - millimeter (HF)
32
Functional length - inch (LF)
9.843
Functional length - millimeter (LF)
250
Primary use
Finishing
Shank height - inch (H)
1.772
Shank height - millimeter (H)
45
Spring clamp parting and grooving tool blade for holding a single ended insert with 4mm cutting width (designation LFMX 4.1-. ), tool style assembly with 45-DU.. for a maximum grooving depth of 80mm, tool blade height 45mm and length 250mm for deep radial grooving, parting-off and tube parting-off
