Pramet XLCFR 160115-2.00 6757077 Modular Blade - Parting And Grooving
MODEL 6757077
$95.92 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

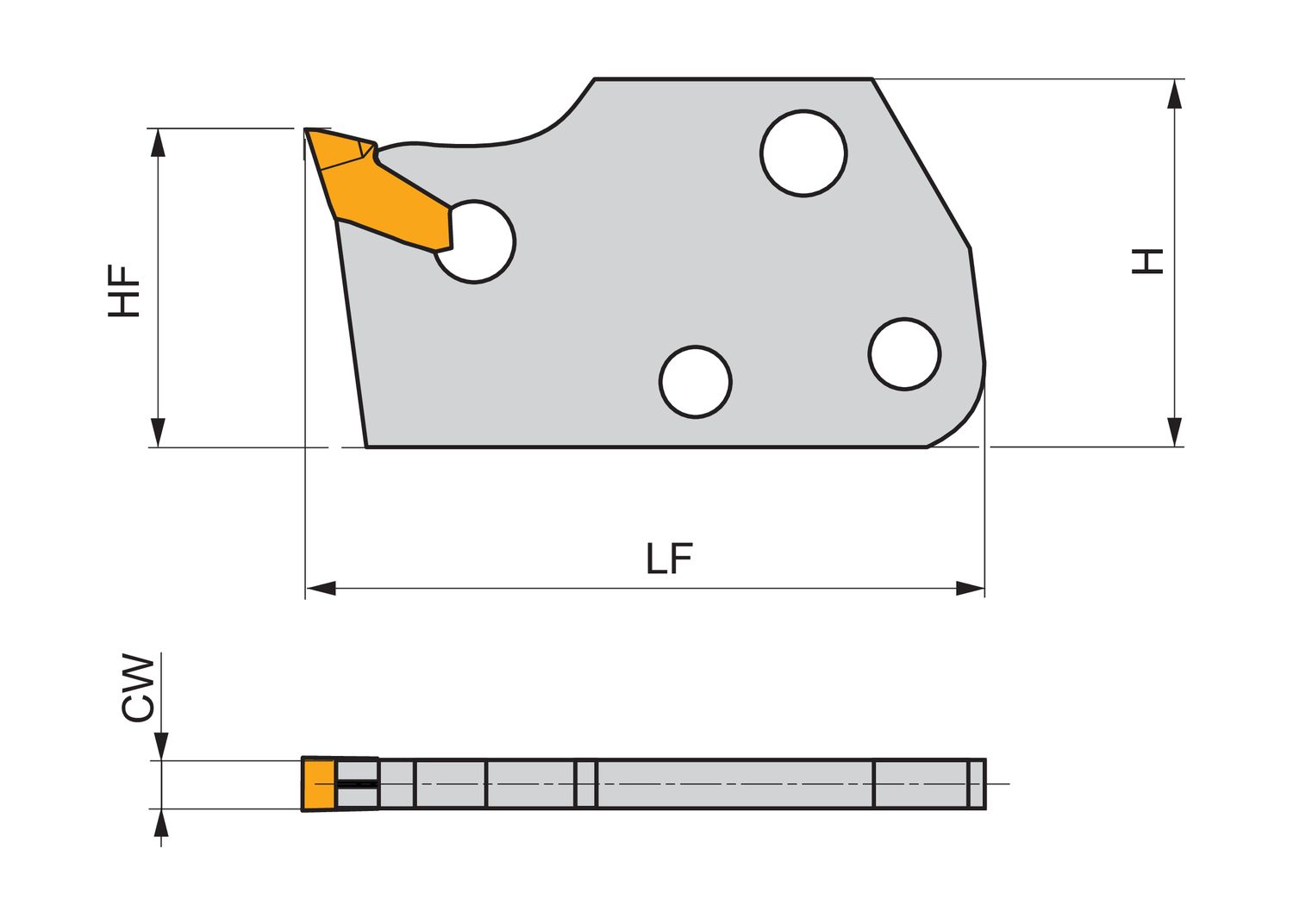

Clamping Type Code (MTP)
System X
Cutting depth maximum - inch (CDX)
0.591
Cutting depth maximum - millimeter (CDX)
15
Cutting width - inch (CW)
0.079
Cutting width - millimeter (CW)
2
Direction of tool
Right
Functional height - inch (HF)
0.472
Functional height - millimeter (HF)
12
Functional length - inch (LF)
1.378
Functional length - millimeter (LF)
35
Insert group used in the tool
LFMX 2.0-, LFMX 2.2-
Primary use
Finishing
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Spring clamp parting and grooving tool blade for holding a single ended insert with 2.0-2.2mm cutting width (designation LFMX 2.0-. / LFMX 2.2-. ), tool style assembly with MS-EN.. (FH), right handed with insert parallel to the shank for a maximum grooving depth of 15mm, for shallow and deep radial grooving, parting-off and tube parting-off
