Pramet XLXFL 250220-3.00-80 6756345 Modular Blade - Axial Grooving
MODEL 6756345
$106.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

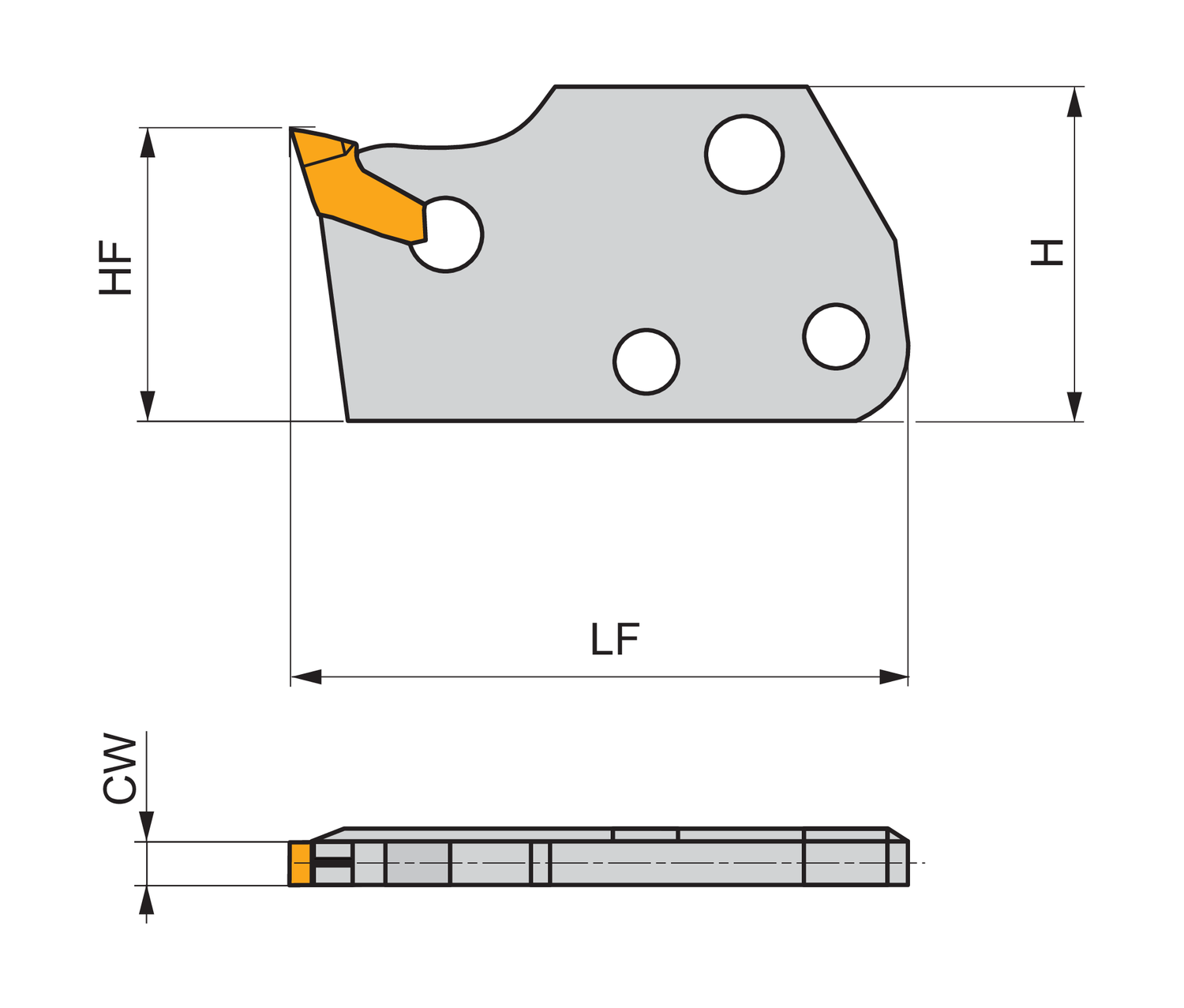

Clamping Type Code (MTP)
System X
Cutting depth maximum - inch (CDX)
0.7874
Cutting depth maximum - millimeter (CDX)
20
Cutting width - inch (CW)
0.122
Cutting width - millimeter (CW)
3.1
Direction of tool
Left
Functional height - inch (HF)
0.945
Functional height - millimeter (HF)
24
Functional length - inch (LF)
1.811
Functional length - millimeter (LF)
46
Minimum axial groove inside diameter - millimeter (DAXIN)
80
Shank height - inch (H)
1.142
Shank height - millimeter (H)
29
Spring clamp parting and grooving tool blade for holding a single ended insert with 3mm cutting width (designation LFMX 3.1-. ), tool style assembly with MS-EN.. (KMP)(S), left handed with insert parallel to the shank for a maximum grooving depth of 20mm, with a counter clockwise curved blade for face grooving a diameter range of 80 and 105mm
