Pramet PHZ 2014-13 6760623 Broaching Tool Holder
MODEL 6760623
$198.30 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Neutral

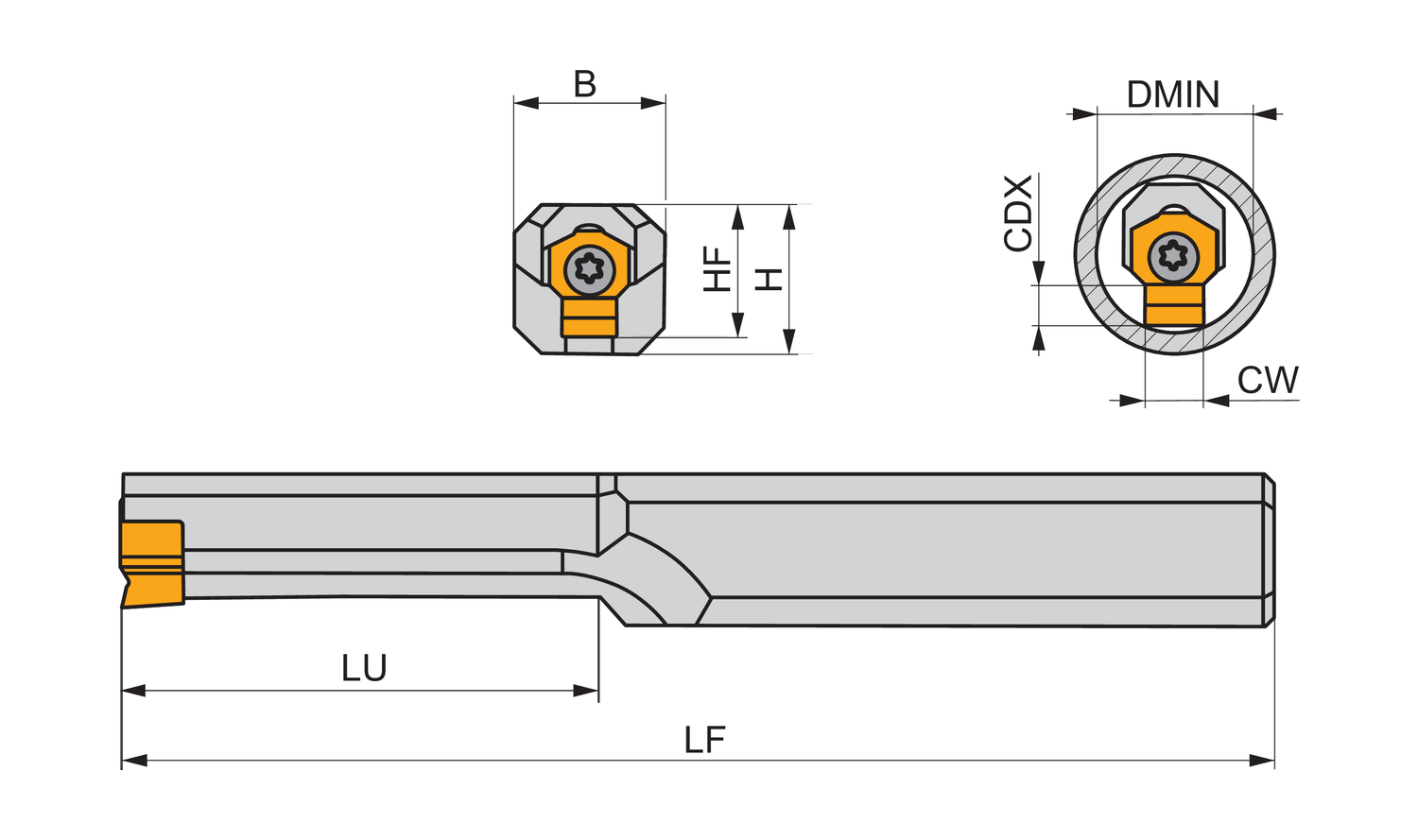

Functional height - inch (HF)
0.846
Functional height - millimeter (HF)
21.5
Overall length - inch (OAL)
9.843
Overall length - millimeter (OAL)
250
Shank height - inch (H)
0.811
Shank height - millimeter (H)
20.6
CNC Broach for carrying a single ended insert, size HZ 1309-100 or HZ 1309-120 for longitudinal slotting 10mm keyways in bore diameters greater than 24.2mm or 12mm keyways in bore diameters greater than 24,7mm
