Pramet OFKR 0704SN-M:M8340 6800838 Milling Insert - Face
MODEL 6800838
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$16.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
M8340
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.472
Depth of cut maximum - millimeter (APMX)
12
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.004
Fixing hole diameter - inch (D1)
0.104
Fixing hole diameter - millimeter (D1)
2.65

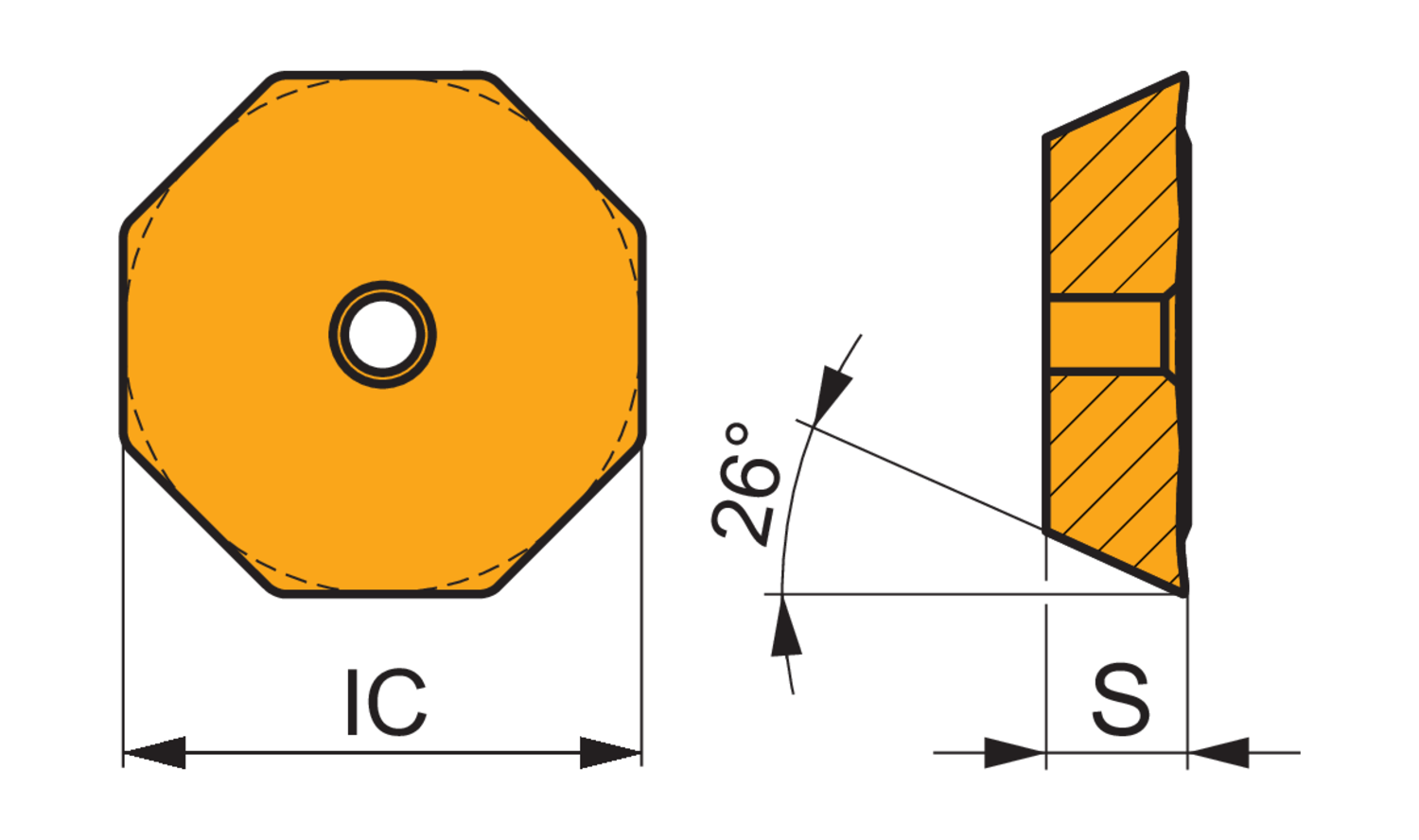

Inscribed circle diameter - inch (IC)
0.703
Inscribed circle diameter - millimeter (IC)
17.845
Insert shape code (SC)
O - octagonal
Insert thickness - inch (S)
0.18
Insert thickness - millimeter (S)
4.56
Single-sided milling insert OFKR 0704 with chip-breakers, octagonal for a maximum depth of cut of 12.0mm, with an indexing accuracy according to ISO-tolerance class-K and M geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel
