Image for Illustration purposes only. Actual product may vary
Pramet SBKX 2207DZER:M8326 6801307 Milling Insert - Heavy Duty
MODEL 6801307
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$44.68 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8326
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.591
Depth of cut maximum - millimeter (APMX)
15
Feed maximal - millimeter
0.8
Feed minimal - millimeter
0.35

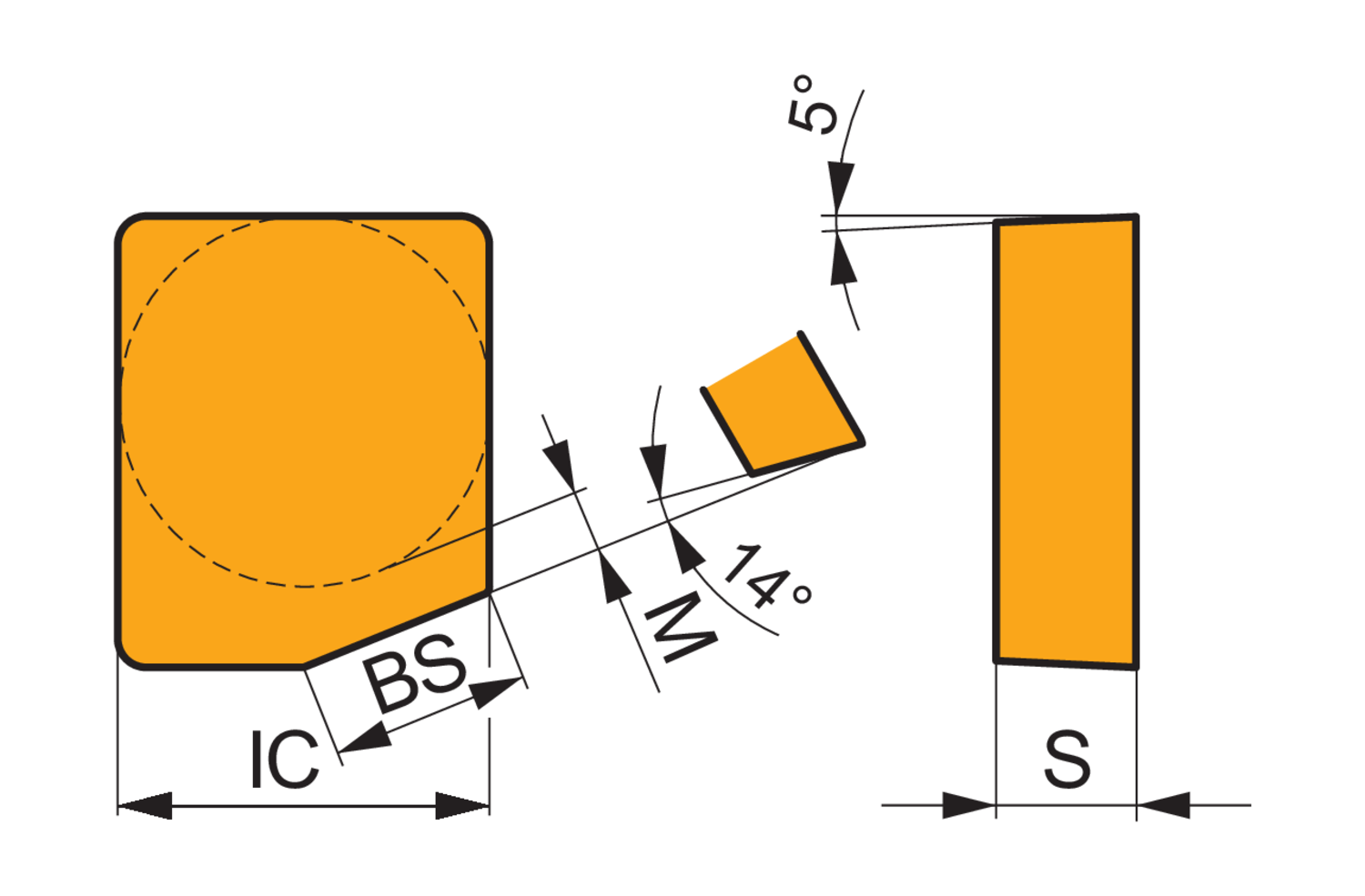

Inscribed circle diameter - inch (IC)
0.866
Inscribed circle diameter - millimeter (IC)
22
Insert length - inch (INSL)
0.866
Insert length - millimeter (INSL)
22
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.315
Insert thickness - millimeter (S)
8
m-dimension - inch (M)
0.127
m-dimension - millimeter (M)
3.22
Wiper edge length - millimeter (BS)
11.84
Single-sided milling insert SBKX 2207, square for a maximum depth of cut of 15.0mm, with an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8326 PVD coated WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills FSB22X
