Image for Illustration purposes only. Actual product may vary
Pramet LC 2010-KP:M8310 6922538 Milling Insert - Copy And Profile
MODEL 6922538
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$43.10 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
KP
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

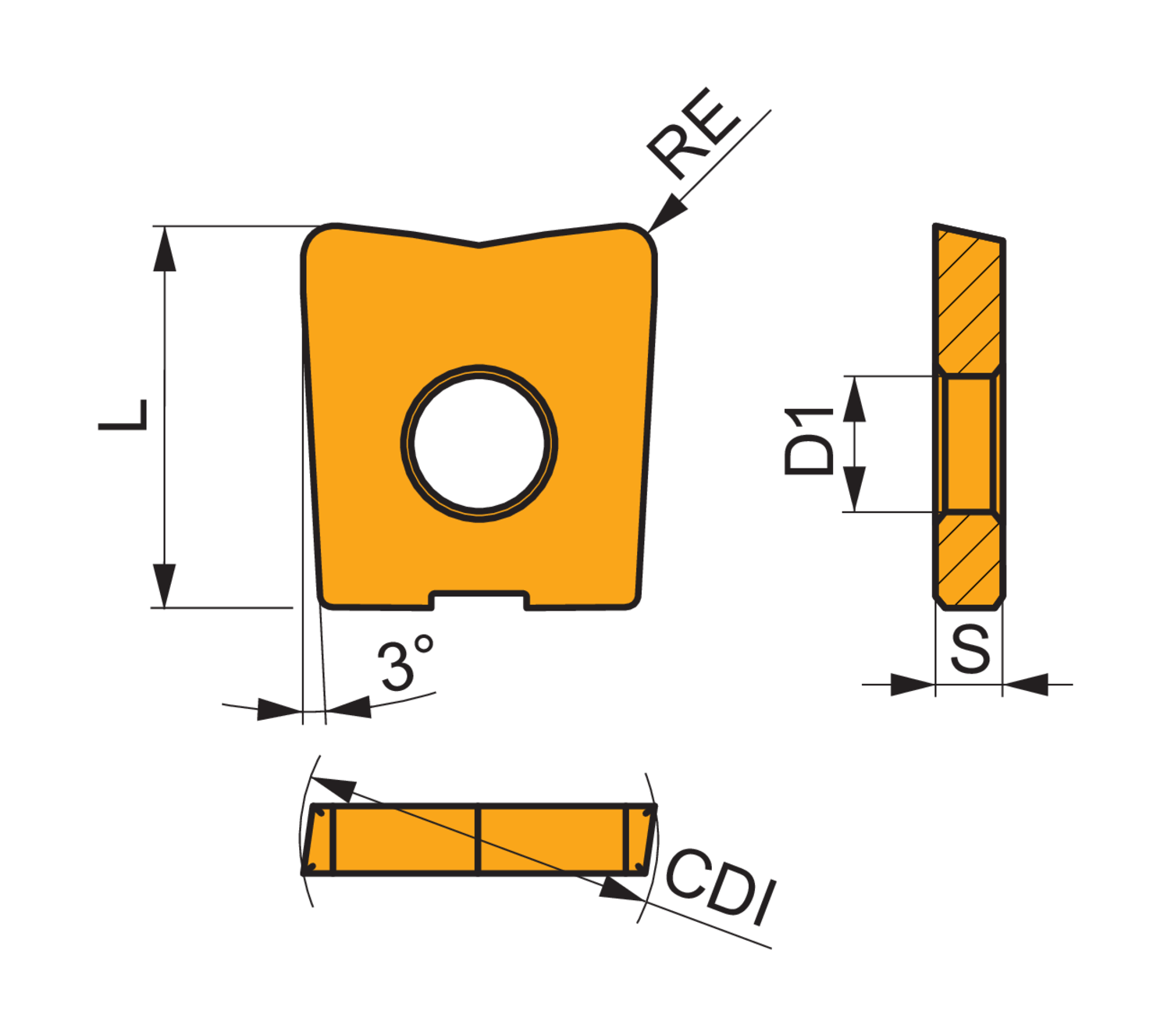

Corner radius - inch (RE)
0.039
Corner radius - millimeter (RE)
1
Cutting edge length - inch (L)
0.709
Cutting edge length - millimeter (L)
18
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.08
Feed_MAX_IMP_NUM
0.014
Feed_MIN_IMP_NUM
0.003
Fixing hole diameter - inch (D1)
0.197
Fixing hole diameter - millimeter (D1)
5
Insert cutting diameter - inch (CDI)
0.787
Insert cutting diameter - millimeter (CDI)
20
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.118
Insert thickness - millimeter (S)
3
Toroidal copy milling insert with a diameter of 20mm and 1.0mm corner radii for a maximum depth of cut of 1.0mm, KP geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-SRC
