Image for Illustration purposes only. Actual product may vary
Pramet RC 25:M8310 6922550 Milling Insert - Copy And Profile
MODEL 6922550
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$53.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.098
Depth of cut maximum - millimeter (APMX)
2.5
Depth of cut minimum - inch (APMN)
0.024
Depth of cut minimum - millimeter (APMN)
0.6
Feed maximal - millimeter
0.55
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.022
Feed_MIN_IMP_NUM
0.004

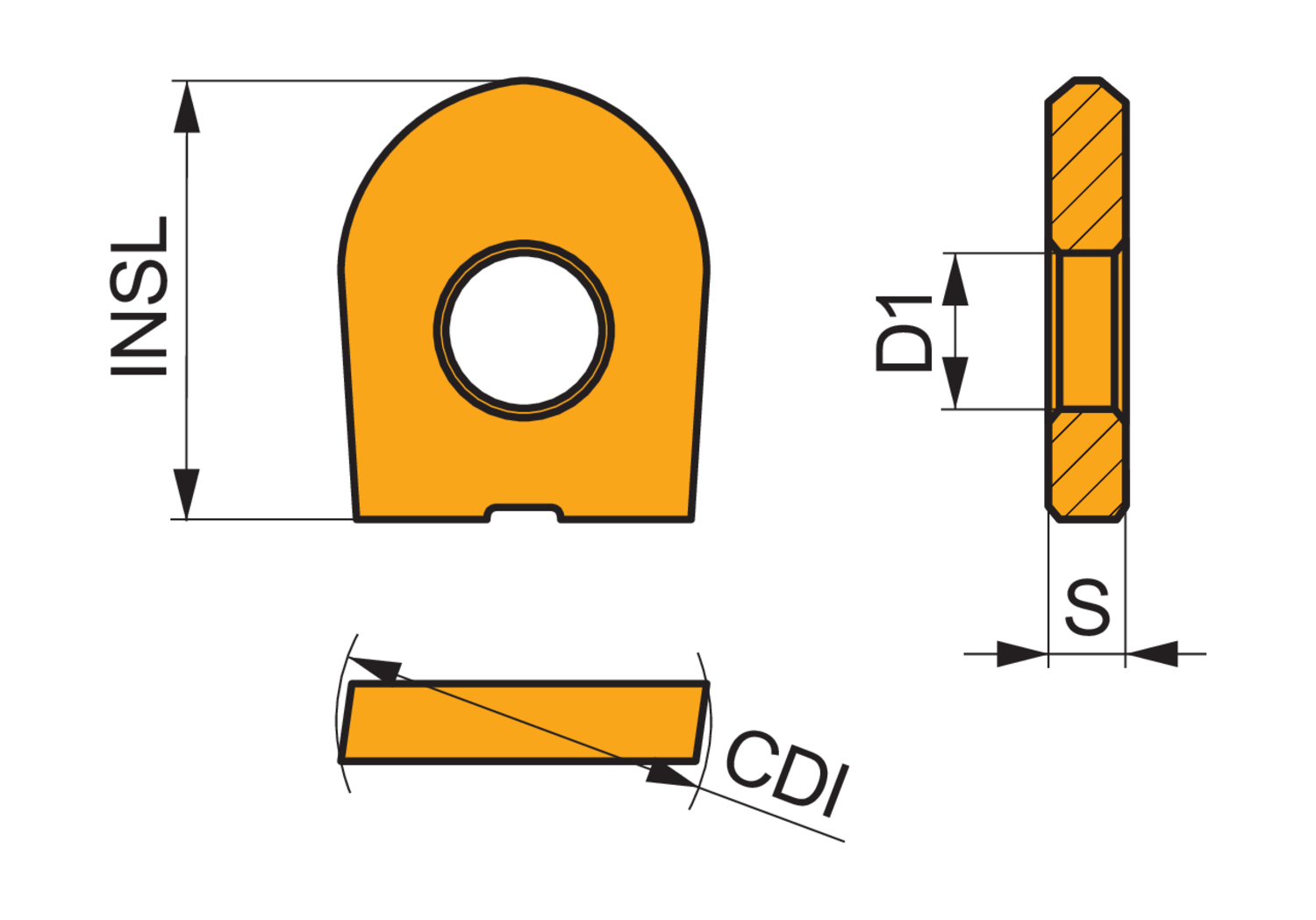

Fixing hole diameter - inch (D1)
0.236
Fixing hole diameter - millimeter (D1)
6
Insert cutting diameter - inch (CDI)
0.984
Insert cutting diameter - millimeter (CDI)
25
Insert length - inch (INSL)
0.846
Insert length - millimeter (INSL)
21.5
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.157
Insert thickness - millimeter (S)
4
Ball nosed copy milling insert with a diameter of 25mm for a maximum depth of cut of 2.5mm, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-SRC
