Pramet RCMT 1204MOSN-R:M8345 6756054 Milling Insert - Copy And Profile
MODEL 6756054
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$10.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.236
Depth of cut maximum - millimeter (APMX)
6
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.5
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.02
Feed_MIN_IMP_NUM
0.008

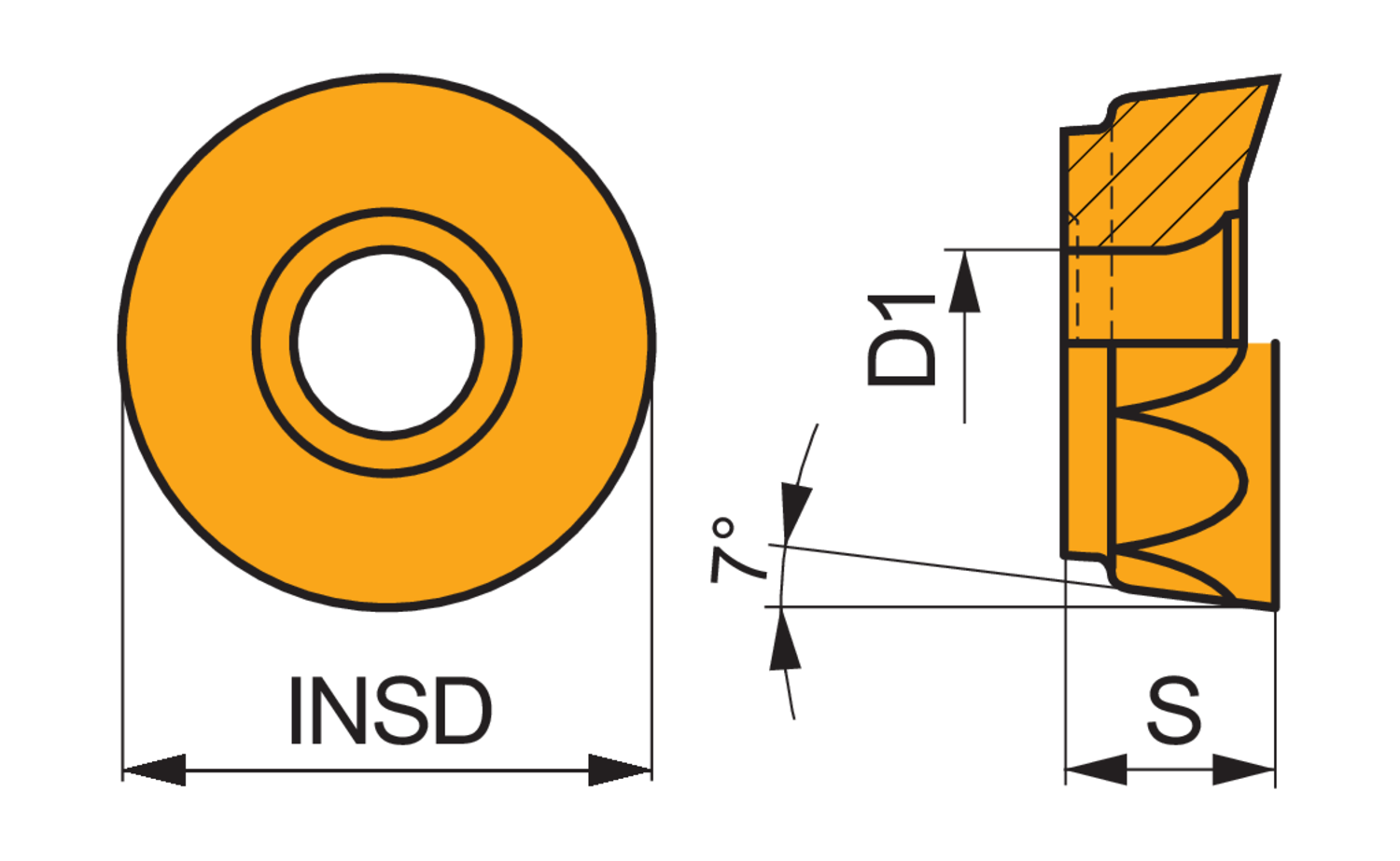

Fixing hole diameter - inch (D1)
0.173
Fixing hole diameter - millimeter (D1)
4.4
Insert diameter - inch (INSD)
0.472
Insert diameter - millimeter (INSD)
12
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert RCMT 1204 with chip-breakers, round for a maximum depth of cut of 6.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy face mills SRC12
