Image for Illustration purposes only. Actual product may vary
Pramet RCMT 1606MOSN-R:M8310 6922553 Milling Insert - Copy And Profile
MODEL 6922553
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$13.53 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.315
Depth of cut maximum - millimeter (APMX)
8
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.6
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.024
Feed_MIN_IMP_NUM
0.008

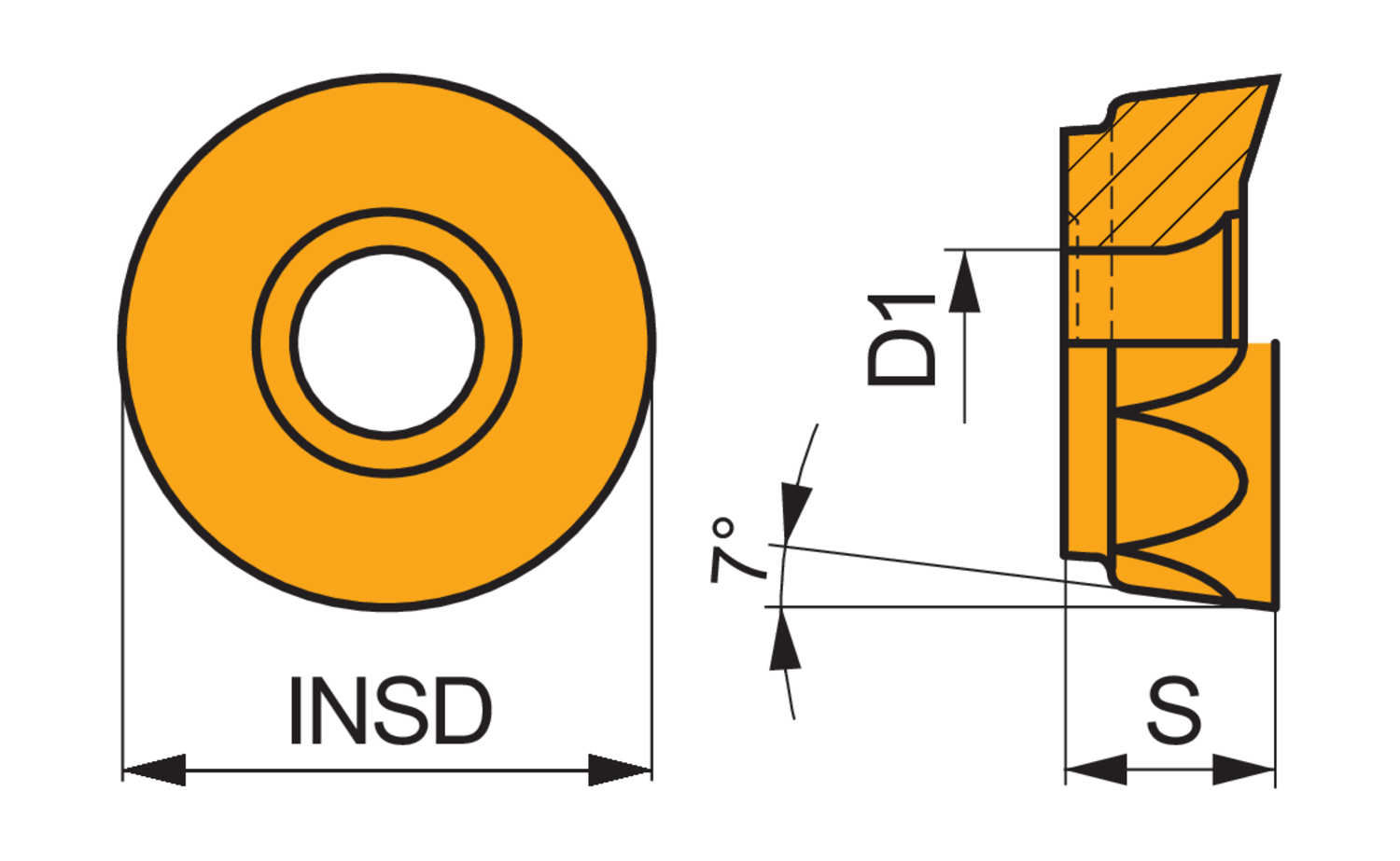

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Insert diameter - inch (INSD)
0.63
Insert diameter - millimeter (INSD)
16
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.25
Insert thickness - millimeter (S)
6.35
Single-sided milling insert RCMT 1606 with chip-breakers, round for a maximum depth of cut of 8.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy face mills SRC16
